At Trafomatic Audio we don’t take any of the usual high-end audio norms as standard. We’re setting them by moving the bar of extreme by each of our products.
We strive for utmost excellence that goes beyond of what industry tried to enforced on the listeners for past few daces. Where most stops, our journey just begins.
The one and only true pure Zen high-end audio venture is welcoming you to joins us on the endless quest for the audio nirvana.
POWER AMPLIFIERS

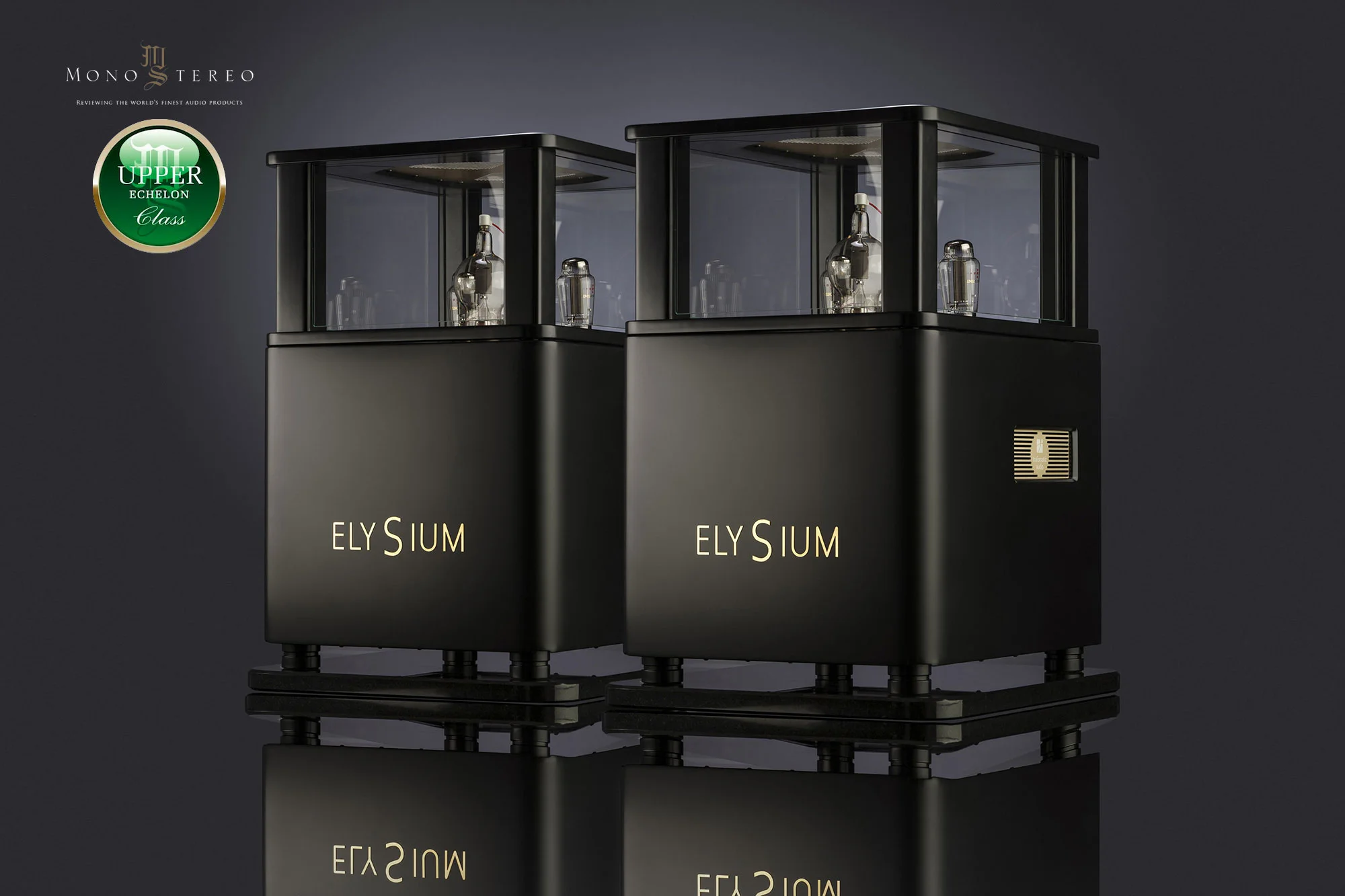

Elysium
Mono Power Amplifiers
After 20+ years of exploring the exotic and ultra high end audio music reproduction we’re proudly presenting our cost no object, flagship state of the art mono-block power amplifiers. Trafomatic Audio was always pursuing the very different path of the musical reproduction beyond typical audiophile norms and with the inner momentum of pure, unaltered sonic performance at the highest level.
In the ultimate pursue the sum of the parts can only be subordinate to the utmost purity and Elysium defines what is possible beyond typically given high-end audio industry norms. We care to differ and we dare to differ!
Elysium is embodiment of the state of the art musical reproduction translating into the most demanding, flamboyant, and complex aural experience transcending time and space, always conveying the ultimate sound utopia in absence of typical, overused approaches. Others speak of transparency, focusing and resolution. We enforce the natural massiveness of reality in the absence of usual compromises.
Elysium’s embodies Pure Class A DHT single ended utmost refined circuits via Eimac 250TL output tube resolving with 60 Watts of Class A unrestrained power output per channel, implements EML 20b-V4 as most linear DHT and EML 5Z3 rectifier as well. 250TL is directly coupled by the unconventional interstage transformer to EML 20B-V4. This is a unique and so far unseen approach deriving any last bits of sonic information from the the most refined audio sources.
Elysium’s innate sense of profound delicacy and luminous, uncompromising sound performance purely serves connoisseur Bon vivant, utmost demanding listeners.
Our flagship power amplifier encapsulate vividness, complex natural colors, perfect timbre and portraits the original events reenacted conspicuously, flourishing the exact musical language momentum with end of the road catharsis and natural scale leaving you speechless.
Nothing is hidden to the ear or of reserved nature. Elysium leads to the ultimate aural experience, taking no prisoners and defining of what’s possible in the domain of exotic high-end audio.
Technical specifications:
Output power: 70W
Class of operation: Full DHT SE
Class A 20W, Class A1 20-70W
Tubes complement: 2x 20B-V4 EML 1x 5Z3 EML , 1x 250TL EIMAC
Inputs: RCA/XLR
Tubes protect: Wood/glass cover
Outputs: 4 and 8 ohms
Input sensitivity: 3.5Vrms
THD %: 0.3% – 1W/1KHz, 4% – 70W/1KHz
Frequency bandwidth:10Hz(-2dB)-60KHz( -3dB)
S/N Ratio: 79dB
Input inpedance: 47K
Power consuption: 500VA
Input voltage: 230V/50Hz (100-120-220-240V available on request)
Size: 620x520x800mm
Weight: 85kg per mono
Pandora
Mono Power Amplifiers
When opening Pandora’s box Greek mythology tells us to expect “Any source of great and unexpected troubles”. Now imagine you must open 2! Even more sources of trouble?
Not when those boxes of Pandora are delivered by Sasa Cokic. Each of these boxes contain one of the finest tube mono amplifiers on the market, presented to you under the name Pandora. Designed to bring you the ultimate musical experience and joy.
Beautifully hand crafted designed housing, technically based upon the Svetlana 811-10 power tubes these mono amps deliver you up to 40 Watts in pure Class A each.
Sonically the Pandora mono amplifiers present a grand palette of musical textures in the best Trafomatic fashion. Bass is tight and fast, the mid-range glorious, the high frequencies liquid and airy.
Features:
Combination of direct coupling between stages and Interstage transformer coupling
Implements special C-L-C anode voltage filter using Mundorf MLytic HV type electrolytic and High inductivity filter choke made by Trafomatic Audio
Oversized, low inductivity II C core main transformers
II C core oversized output transformers
The output transformers are highly sectioned with harmonically sized sections, which results in a minimum leakage inductance and the best high frequency performance
-3dB feedback
Imagings are superbly holographic and the soundstage vastly layered and wide. While sonics are stunning, they will never be in the way of the music’s embedded emotions. The Pandora mono’s are dynamic amplifiers with a firm grip on the beat to convincingly portray musical motion and faithfully capture how live music flows over time. They recover plenty of detail, provide very good articulation of vocals, produce a large sense of space and build their virtual stage on rock-solid imaging.
Pure and elegant in design, circuit minimalism with very high quality parts preserves the primal qualities of reproduced sound and opens up new dimensions for the playback experience.
The Pandora monoblocks run two drivers tubes 6N30P called also “super tube” and two direct heated triode made by Svetlana 811-10. Each amp houses an epoxy resin-potted 6kg double C-core output transformer, 10Kg main power double C- core transformer , one high inductivity filter choke and an interstage transformer for driving SV811-10 tubes all made by Trafomatic Audio
High-level line input transformer LL1592 provide phase splitting with high degree of simetry.
All tubes are with DC heating to improve signal / noise ratio .
Pandora used -3dB of NFB just in output stage ( cathode feedback )
Pandora doesn’t use capacitors in signal way .
Technical Specifications:
Class of operation: Push Pull DHT class A
Tubes: 2x 6N30P and 2x direct heated triode SV 811-10 per channel
Output impedance: 4 and 8 ohms
Input sensitivity : 1.4Veff at XLR
Input impedance: 47Kohms
Gain : +28dB
Output power: 40W
THD at 1W/1kHz: 0.2%
Input: XLR
Frequency bandwidth: 10Hz (-1dB) – 90KHz (-2dB)
S/N: 88dB
Input voltage: 230V/50Hz- 115V/60Hz selectable
Power consumption: 280VA
Weight: 32 kg per mono
Dimensions: W 340 x D 480 x H270 mm
Glenn
Mono Power Amplifier
The world’s greatest 300B amplifiers ever build?
The ‘’Glenn’’ Parallel Single Ended 300B mono amplifiers are Trafomatic Audio’s latest statement amplifiers and truly formidable to behold. These elegant, handbuild amplifiers provide the shortest paths between components. Combine Sasa Cokic experience of over 30 years of tube amplifier buildings with oversized output transformers and the best components possible and you get what the Glenn amplifiers are all about: a true work of art!
The Glenn story started as a the idea for a crossbread between the Experience 2 MK II and the Experience Reference 300B: the power and authority of the Reference and the versatility of the Experience. This way creating an amplifier which can be used with all kinds of 300B tubes available on the market and bringing you the most universal 300B power amp ever build. Even the negative feedback can be adjusted between 0 dB and -3 dB in steps of 1 dB, which makes it the most complete 300B amps money can buy.
Features:
Interstage transformer coupling between stages
Implements special C-L-C anode voltage filter using Mundorf MLytic HV type electrolytic and High inductivity filter choke made by Trafomatic Audio
Oversized , low inductivity II C core main transformers
II C core oversized output transformers
The output transformers are highly sectioned with harmonically sized sections, which results in a minimum leakage inductance and the best high frequency performance
WBT connectors and Teflon tube sockets
The Glenn monoblocks run E182CC NOS tube and two direct heated triode 300b as well as 5U4G tube rectifier. Each amp houses an epoxy resin-potted 6kg double C-core output transformer, 10Kg main power double C- core transformer , one high inductivity filter choke and an interstage transformer for driving 300b tubes all made by Trafomatic Audio
The Glenn Parralel Single Ended 300B mono amplifiers: Pure and elegant in design, hard wired circuit minimalism with very high quality parts preserves the primal qualities of reproduced sound and opens up new dimensions for the playback experience.
Hear for yourself!
Technical Specifications:
Output power: 15 watts
Class of operation: Single-ended class A
Tubes complement (per mono): 2 x 300B , 1 x ECC99 , 1 x EZ80 (EZ81), 1 x 5U4G
Input: 1 x RCA
Output: 4 and 8-ohm 5-way speaker binding posts
Input sensitivity: 2.5Vrms
THD: 0.35% @ 1W/1kHz; 0.85% @ 15W/1kHz
Bandwidth: 10Hz( -0.2dB) to 110kHz (-3dB)
S/N Ratio: 80dB
Input impedance: 100 kohm
Input voltage: 230V (100-120-220-240V available by request)
Power consumption (per mono): 200VA
Size: 390 x 260 x 160mm
Weight: 20kg single unit
Stereo Power Amplifiers
EOS +
Stereo Power Amplifier
The EOS+ power amplifier is the most powerful dual mono amplifier in the Trafomatic Audio productions. It is constructed as push-pull using well known KT150 output tubes.
Output power is 150W per channel, which is sufficient for most speakers, even those with lower than average sensitivity. This is a power amplifier, requiring preamplifier and opening endless possibilities for system configuration.
Based on previous work on negative feedback, -6dB reaction has been tuned to provide sound equivalent to a good Single Ended application. Cathode feedback was used as the most musical one. Bass is well controlled, dynamic response is excellent and this amplifier belongs to the very top of its class.
Well designed power supply made as separate unit utilizes 800VA toroidal transformer and C-L-C filter separated for each channel. Output transformers are based on a Double-C core configuration and Solen fast capacitors are used throughout. Adding well thought-out concept to the mix results in a recognizable high quality sound of our amplifiers.
The new modern styling of Trafomatic Audio amplifiers has been extended to this model as well,which makes a perfect sonic and visual fit with your room.
Finale di potenza stereo Trafomatic Audio EOS +
L'amplificatore EOS+ si colloca al vertice dell'attuale produzione della Trafomatic Audio, quale finale stereo piu' potente in assoluto. Configurazione push-pull con le note valvole KT150 della Tungsol agli stadi di uscita e con una potenza di 150 W per canale l'EOS e' in grado di pilotare egregiamente qualsiasi sistema di casse acustiche, comprese quelle con una sensibilita' al di sotto della media.
Il design interno, basato sulle precedenti esperienze di feedback negativo, e' stato ulteriormente raffinato per conseguire il suono di un ottima applicazione Single Ended. Con una gamma bassa strepitosa, unita ed una risposta dinamica e dei transienti senza pari, l'EOS+ appartiene alla rarefatta sfera di elettroniche top a livello mondiale.
L'alimentazione esterna utilizza un trasformatore toroidale da 800VA, filtri C-L-C sovradimensionati e separati per ogni canale. I trasformatori di uscita sono del tipo Double-C core, con tipologia interna basata sul utilizzo esclusivo di condensatori Solen.
Il design esteriore rispecchia le recenti linee della casa, quale oggetto di rara bellezza ed emissione sonora. Il nuovo look ne' facilita la collocazione sia negli ambienti classici, integrandosi perfettamente in quelli moderni, facendo del EOS+ un icona, destinato a diventare un classico nel mondo Hi-End. Come per tutte le elettroniche Trafomatic Audio, e' prevista la possibilita' di un ulteriore personalizzazione del design esterno, in modo da avvicinarsi alle preferenze ed esigenze dei singoli clienti, dando origine ad elettroniche uniche ed esclusive.
Technical Specifications:
Output power: 2x150W
Class of operation: Push-Pull (class AB)
Tubes complement: 4x KT150 Tungsol, 2x ECC99, 2x 5687
Inputs: RCA/XLR
Tubes protect: Acrylic front glass
Outputs: 4 and 8 ohms
Input sensitivity: 1.2Vrms
THD %: 0.03% – 1W/1KHz, 3% – 150W/1KHz
Frequency bandwidth:10Hz(-1dB)-100KHz( -1dB)
S/N Ratio: 82dB
Input inpedance: 100K
Power consuption: 500VA
Input voltage: 230V/50Hz -115V/60Hz switchable
Amplifier Size: 450x350x230mm
Power supply size : W150 x D300 x H200mm
Weight: 27kg amplifier + 11kg power supply box
EOS
Stereo Power Amplifier
The EOS power amplifier is the second one by power in the Trafomatic Audio productions. It is constructed as dual mono push-pull using well known KT120 output tubes.
Output power is 100W per channel, which is sufficient for most speakers, even those with lower than average sensitivity. This is a power amplifier, requiring a preamplifier and opening endless possibilities for system configuration.
Based on previous work on negative feedback, -6dB reaction has been tuned to provide sound equivalent to a good Single Ended application. Cathode feedback was used as the most musical one. Bass is well controlled, dynamic response is excellent and this amplifier belongs to the very top of its class.
Well designed power supply made as separate unit utilizes 800VA toroidal transformer and C-L-C filter separated for each channel. Output transformers are based on a Double-C core configuration and Solen fast capacitors are used throughout. Adding well thought-out concept to the mix results in a recognizable high quality sound of our amplifiers.
The new modern styling of Trafomatic Audio amplifiers has been extended to this model as well,which makes a perfect sonic and visual fit with your room.
An excellent starting point for full immersion in good sound. See and hear for yourself.
Finale di potenza EOS:
Configurazione push-pull con le note valvole KT120 della Tungsol agli stadi di uscita e con una potenza di 100 W per canale l'EOS e' in grado di pilotare egregiamente qualsiasi sistema di casse acustiche, comprese quelle con una sensibilita' al di sotto della media.
Il design interno, basato sulle precedenti esperienze di feedback negativo, e' stato ulteriormente raffinato per conseguire il suono di un ottima applicazione Single Ended. Con una gamma bassa estesa e ottimamente controllata, unita ed una risposta dinamica e dei transienti senza pari, l'EOS appartiene alla rarefatta sfera di elettroniche Hi-End a livello mondiale.
L'alimentazione esterna utilizza un trasformatore toroidale da 800VA, filtri C-L-C sovradimensionati e separati per ogni canale. I trasformatori di uscita sono del tipo Double-C core, con tipologia interna basata sul utilizzo esclusivo di condensatori Solen.
Il design esteriore rispecchia le recenti linee della casa, quale oggetto di rara bellezza ed emissione sonora. Il nuovo look ne' facilita la collocazione sia negli ambienti classici, integrandosi perfettamente in quelli moderni, facendo del EOS un icona, destinato a diventare un classico nel mondo Hi-End. Come per tutte le elettroniche Trafomatic Audio, e' prevista la possibilita' di un ulteriore personalizzazione del design esterno, in modo da avvicinarsi alle preferenze ed esigenze dei singoli clienti, dando origine ad elettroniche uniche ed esclusive.
Technical specifications:
Output power: 2x100W
Class of operation: Push-Pull (class A)
Tubes complement: 4x KT120 Tungsol, 2x 6N6P(ECC99), 2x5687
Inputs: RCA/XLR
Tubes protect: Acrylic front glass
Outputs: 4 and 8 ohms
Input sensitivity: 1Vrms
THD %: 0.03% - 1W/1KHz, 2% - 100W/1KHz
Frequency bandwidth: 10Hz(-1dB)-100KHz(-1dB)
S/N Ratio: 82dB
Input inpedance: 100K
Power consuption: 500VA
Input voltage:230V/50Hz (100-120-220-240 available on request)
Size: 450x350x230mm
Weight: 25kg amplifier + 11kg power supply box
Evolution Elegance
Stereo Power Amplifier
Evolution Elegance is the most powerful amplifier in the Evolution series. It is constructed as push-pull using well known 6550 (KT88) output tubes. Output power is 50W per channel, which is sufficient for most speakers, even those with lower than average sensitivity.
This is a power amplifier, requiring preamplifier and opening endless possibilities for system configuration. Based on previous work on negative feedback, -6dB reaction has been tuned to provide sound equivalent to a good Single Ended application. Cathode feedback was used as the most musical one. Bass is well controlled, dynamic response is excellent and this amplifier belongs to the very top of its class.
Same as all previous models, well designed power supply utilizes 300VA toroidal transformer, C-L-C filter and Nippon Chemi-Con electrolytics. Output transformers are based on a Double-C core configuration and Solen fast capacitors are used throughout. Adding well thought-out concept to the mix results in a recognizable high quality sound of our amplifiers.
Modern styling of Trafomatic Audio amplifiers has been extended to this model as well, which makes a perfect sonic and visual fit with Evolution Line One preamplifier. An excellent starting point for full immersion in good sound. See and hear for yourself.
Technical Specifications
Output power: 2x50W
Class of operation: Push-Pull (class AB)
Tubes complement: 4x 6550 (KT88) , 4x ECC82
Inputs: 1xRCA , 1xXLR
Outputs: 4 and 8 ohms
Input sensitivity: 2Vrms
THD %: 0.03% – 1W/1KHz, 2% – 50W/1KHz
Frequency bandwidth: 10Hz(-1dB)-85KHz( -3dB)
S/N Ratio: 85dB
Input inpedance: 100K
Power consumption: 250VA
Input voltage: 230V/50Hz – 115V/60Hz switchable
Size: 450x320x195mm
Weight: 22kg
Preamplifiers
Tara 30 A
Redefining the concept of the preamplifire
Full balanced Class A preamplifier with line output transformers
Separate power supply
Redefining the concept of the pre-amplifier, that was the goal set for Trafomatic Audio.
Since the Elysium State of the Art tube power-amplifiers were launched in 2016 the search started for a matching quality tube pre-amplifier with some additional features. For instance, an extreme low output impedance. Not only for matching with different power amps, but as well for the use of long, high quality interconnects. Extremely hard to find in pre-amp tube designs.
Also the need for a perfect balance between the channels was on the wish list. Not just a common balance, this is available on several pre-amps worldwide, unfortunately they are never as accurate as wished for. What was needed is a highly precise adjustment between both the channels measured in mV for the highest accuracy.
Since none of the available pre-amplifiers on the market were up to this task it was decided to develop this in house at Trafomatic.
It took more than 3 years to fine-tune ideas, but at the end it was there: Based upon spring suspended Emission Labs 30A tubes, Dynamic Balance Adjustment, extreme low output impedance, specially designed output transformers and chokes.
The final challenge was the visual design. This much amplifier fitting a moderate housing was impossible, but at the end a 2-chassis, organic design in the Trafomatic house style was created.
We present you: The Trafomatic TARA 30A pre-amplifier!
Technical Specifications :
Gain: 20dB
Input transformers: Customised LL1592 high level line input mu metal core based transformers
S/N: – 98dB
Inputs: 3x XLR , 1x RCA
Outputs: 2xRCA, 2xXLR by channel
Output Impedance: 25 Ohms, XLR and RCA
Frequency Response: 5Hz- 200KHz (-1dB)
Vacuum Tube Complement 2x 6N30P (6N6P) , 4x EML 30A
Power supply: Low Induction toroid transformer by Trafomatic Audio, High Inductivity custom made chokes, Mundorf MLytic HV type
Requirements : 230V/50Hz -115V/60Hz switchable
Power consuption: 200VA Weight :22 kg with power supply
Dimensions : 470 x 350 x 120 mm each box

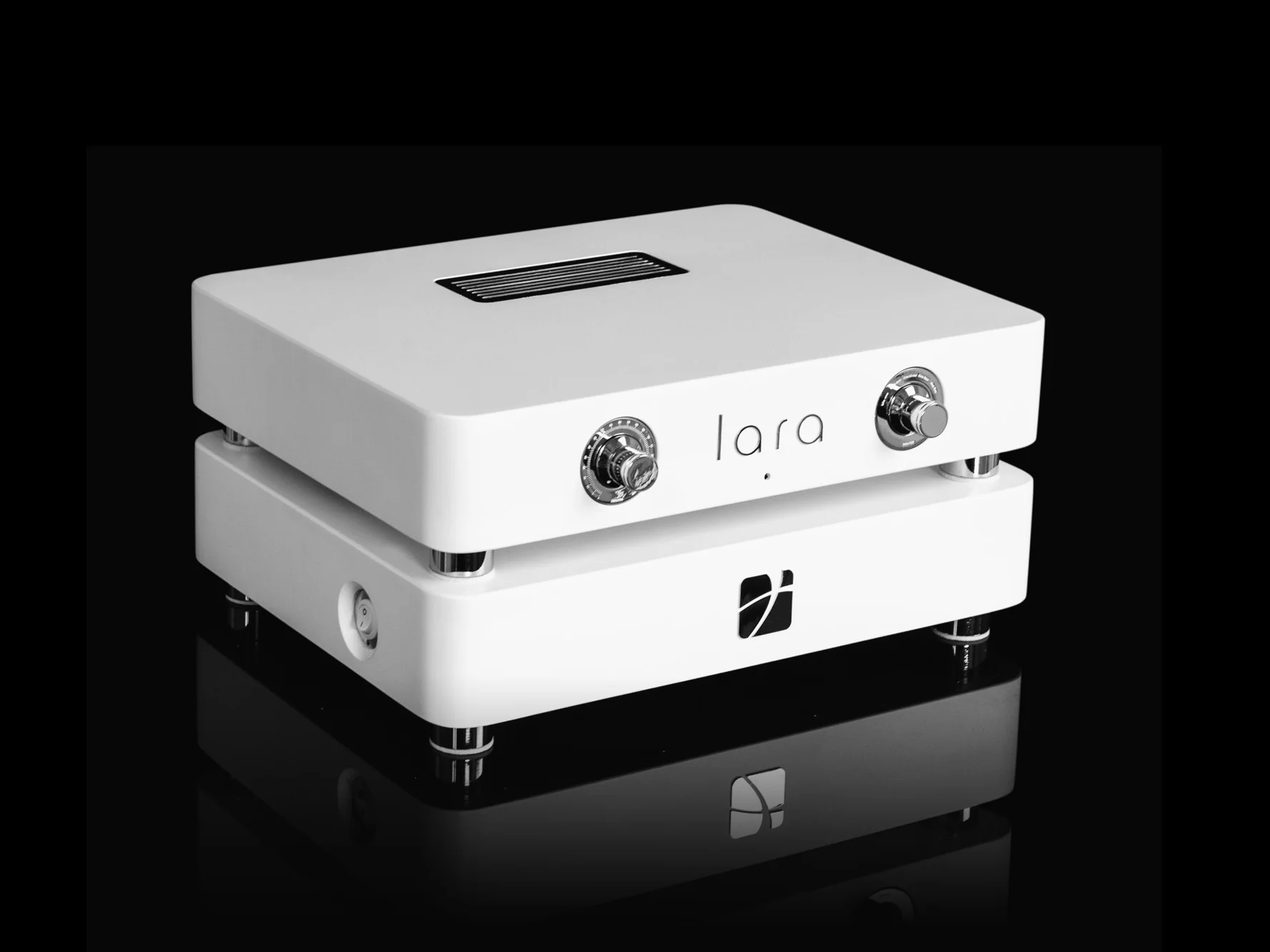

Lara
Two chassis Line level preamplifier
LARA incorporates many design principles from our reference and state of the art preamplifiers. After months of research we managed to find a properly performing circuits that reflects with a grand portion of trickle down high tech solution from the Trafomatic top range.
But, thats not all. We pushed things further and LARA comes as a two chassis line level preamplifier fully balanced, remotely controlled Class A line stage with outputs transformers, custom made chokes, separate power supply and 20dB gain. LARA implements 6N30P tubes for best linearity, transparency and musical impact. LARAline preamplifier follows the Trafomatic Audio ultimate pursue for the highest musical reproduction, but at more affordable price, that open up the doors of pure musical enjoyment to wider audience.
LARA is no coincidence or market filler. This is full bloodied Trafomatic Audio high-end audio line stage preamplifier that can compete with products with much higher price. As always, we’re letting you to judge the final sonic results by yourself and let your ears and heart decide.
LARA strikes where its most important – music! We treat gain as the epicenter of the preamplifier and without utmost refinement of the signal traveling through the high-end audio preamplifier there is not even a remote chance to accent the fragile music signal to the level worthy to be called high-end audio.
Technical Specifications:
Full balanced Class A preamplifier with line output transformers,
Separate power supply
Volume Remote controlled
Gain: 20dB
Input transformers: LL1592 high level line input mu metal core based transformers
S/N: – 88dB
Inputs: 3x RCA , 2x XLR
Outputs: 1xRCA, 1xXLR (switchable) ,1x Sub Out independed
Output Impedance: 1KOhms, XLR and RCA
Frequency Response: 10Hz- 67KHz (-1dB)
Vacuum Tube Complement : 2x 6N30P
Power supply: Low Induction toroid transformer by Trafomatic Audio, High Inductivity
custom made chokes, Mundorf MLytic HV type
Requirements 230V/50Hz -115V/60Hz switchable
Power consuption: 80VA
Weight: 10 kg
Dimensions: 400 x 310 x 100 mm
Evolution Line One
Stereo line preamplifier
The Evolution Line One is full tube stereo line preamplifier in the Evolution series. It came as a logical extension of the Elegance Evolution power amplifier. Consequently, we were challenged with a difficult task of meeting high quality of the existing Evolution products. This product, as well as all the previous ones, is built following the principle of using minimum of active parts with the top quality passives. After the long development and multitude of circuit variations The Evolution Line One was born. Previous experience has shown that only a no-compromise design is worth the effort and we followed that philosophy throughout this work.
Final selection called for a well known double triodeECC88 which has its place among the very best. The Evolution Line One has twoECC88 tubes, one per channel. In order to achieve minimum output impedance the second triode within a single glass envelope is connected as cathode follower. Special care was taken to design a high performance power supply, a common trait of all products from The Evolutione series. Diode rectification followed by C-L-C filter and high quality electrolytic capacitors ensure extremely low output ripple on the anode supply. Stabilization tube for anode voltage for ECC88 is a well known ECL82 , indirectly heated tube. Toroidal transformer improves this section even further, considering its very low fringe magnetic field.
The Evolution Line One has 5 line inputs, one stereo output ,fixed TAPE out and Subwoofer out . Elegant design to match The Evolutione series, this preamplifier calls for attention with his modern styling and sound quality and deservedly strives to occupy a leading spot on the audiophile scene.
Preamplificatore Linea Evolution Line One
Trafomatic Audio Evolution Line One - preamplificatore stereo interamente valvolare della serie Evolution. Il preamplificatore Line One e' l'estensione logica dell'amplificatore di potenza Elegance Evolution e di conseguenza e' stato un'ulteriore sfida per i progettisti della Trafomatic nel impegnativo compito di mantenere e migliorare ulteriormente l'alta qualità dei prodotti Evolution esistenti. L'Evolution One, in piena tradizione Trafomatic, è costruito seguendo il principio di un minimo utilizzo di parti attive, mentre quelle passive sono di altissima qualita'. Le esperienze precedenti hanno infatti dimostrato che solamente un design senza compromessi merita lo sforzo, filosofia progettuale che trova pieno riscontro nella linea Evolution.
La sezione finale utilizza il noto duplice triodo 6N6P, soluzione annoverata tra le migliori esistenti.
Onde ottenere valori minimi d'impedenza all'uscita , il secondo triodo, allogiato all'interno di una singola valvola, adotta la tipologia a catodo inseguitore. Particolare cura è stata dedicata nella progettazione dello stadio di alimentazione ad alte prestazioni, un tratto comune a tutti i prodotti della serie Evolution. La rettificazione del diodo, seguita dal filtro C-L-C e dai condensatori elettrolitici di alta qualità, garantisce un ondulazione d'uscita estremamente bassa del alimentazione dell'anodo. La valvola stabilizzatrice della tensione anodica delle 6N6P è la nota ECL82 riscaldata indirettamente. Il trasformatore toroidale migliora ulteriormente questa sezione, considerando la minima dissipazione del suo campo magnetico.
La linea Evolution One dispone di 5 ingressi di linea, di un'uscita stereo, di un uscita TAPE e di una Subwoofer. Il design esteriore richiama l'attenzione con la sue linee moderne, mentre l'impareggiabile qualità sonora ne fa' un punto di riferimento nella scena audiofila.
Technical Specifications:
Class of operation: Single-Ended (class A)
Tube complement: 2xECC88, 1xECL82 (6BM8)
Input impedance: 47 Kohms
Output impedance: 150 ohms
Inputs: 5xRCA
Outputs: RCA Line out ( 150 ohms output impedance), Tape out (47K ohms output impedance) and Subwoofer out ( 22K ohms output impedance)
Gain : 22dB and 25dB selectable at the back side
THD: 0.3%, 1 KHz / 4Vef
S/N ratio: 85dB
Frequency bandwidth: 12Hz (-1dB) – 65kHz(-3dB)
Input voltage: 230V/50Hz – 115V/60Hz switchable
Power consumption: 50VA
Remote controlled volume control
Size: 450x320x105 mm
Weight: 10 kg

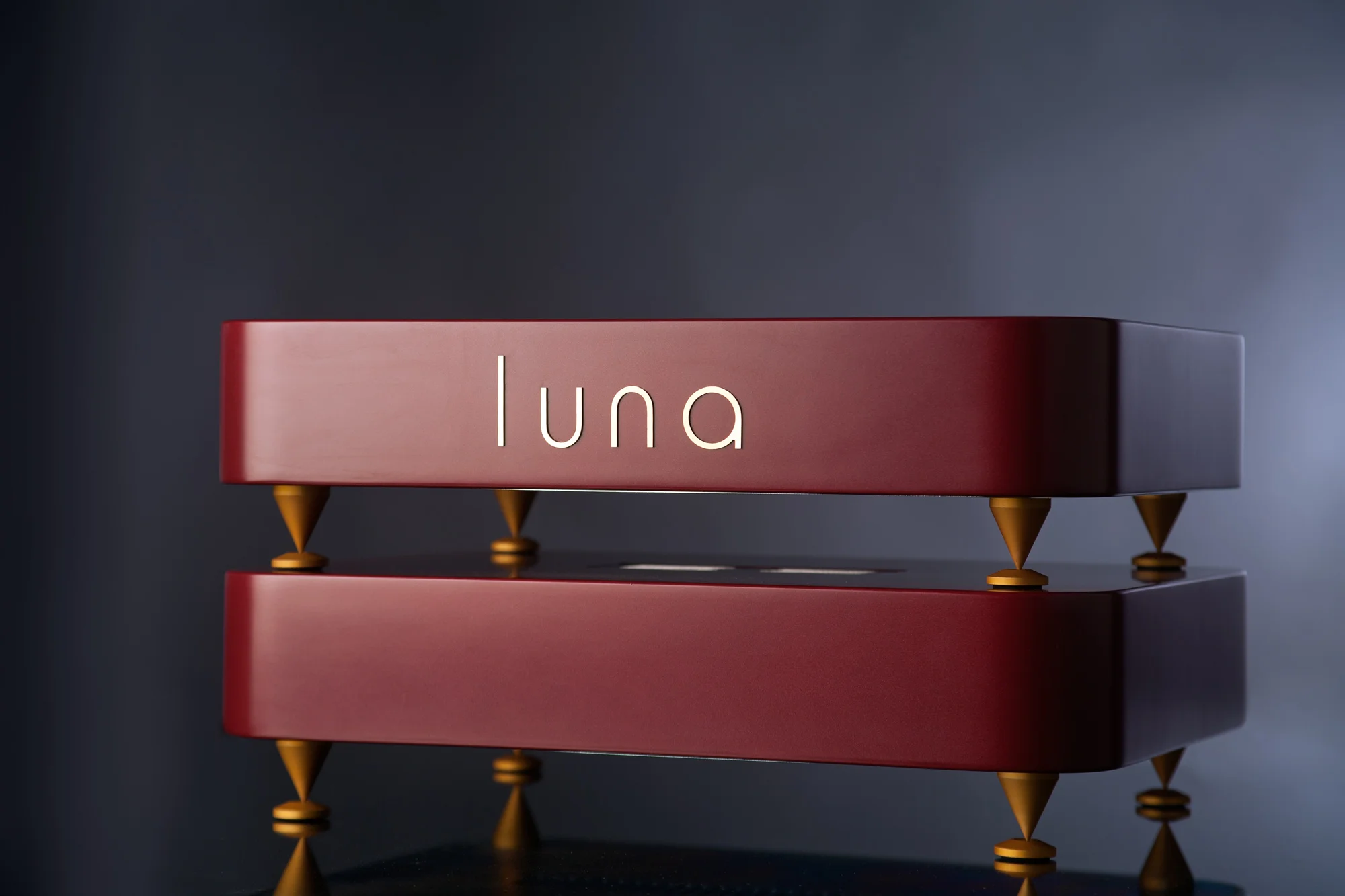

Luna
Phono preamplifier
Luna tube phono preamplifier is top class product in Trafomatic Audio production .
The main advantage is that this preamplifier use very rare LCR method to apply the RIAA correction due to complexity and cost.
There are a total of only the finest components such as four C3g SE tubes connected in triode mode , two interstage and two line output transformers as well as LL1941 input MC step up .
This preamplifier also applies the separately executed power supply used low induction toroidal transformer as well as two high inductivity chokes and Mundorf MLytic HV electrolytic capacitors .
Luna features :
Built in step up transformers
Switches ground plane with input selection preventing ground loops
Balanced and unbalanced output
Separate low impedance CLC power supply
Luna uses two tube gain stages with zero feedback and passive LCR equalizer .
The input stage as well as output is low noise Siemens c3g German Post tubes used in triode connection. Every stage is loaded by transformers and this provide complete isolation of this sensitive circuit from the following components.
There are no capacitors in signal way except in RIAA correction where we used Silver mica ones.
Technical specifications:
Single-ended Class A
Separate power supply
Gain MM – 45 dB, MC – 70 dB using input transformers LL1941 (uncut amorphous cobalt core, Cardas high purity copperwire)
Noise and Hum : -78 dB
Output voltage: 1.0Vrms
Inputs: MM (RCA) – 47k MC (RCA)
Adjustable MC inputs: 10ohms, 20 ohms, 50 ohms, 100 ohms
Output Impedance: 660 Ohms, XLR and RCA
Frequency Response: RIAA Curve +/- 0.4 dB
Vacuum Tube Complement: 4 x C3g SE
Power supply: Low Induction toroid transformer by Trafomatic Audio, High Inductivity custom made chokes, Mundorf MLytic HV type
Requirements 100, 117 or 240 Volts / 50-60 Hz, 60 watts
Weight: 10 kg
Dimensions: 400x 310 x 85mm (two box)
Evolution Phono One
OP AMP phono preamplifier
The Evolution Phono One is entry level OP AMP based phono preamplifier with separated MC and MM inputs as well as possibility to choice MC input impedance.
Technical Specifications:
Gain : MM – 40 dB, MC – 64 dB using low hum J-Fet
Noise and Hum – 80 dB at MM , 76dB at MC
Output voltage: 0.5 Vrms
Inputs: MM (RCA) – 47k/200pF , MC (RCA) – 10, 20, 50, 100 ohms selectable
Output Impedance : 600ohms
RIAA Accuracy : +/- 0.4 dB max below 1KHz , 0.6dB max above 1KHz
OP AMP : OPA 2134 , two per channel
Power supply: Low Induction toroid transformer by Trafomatic Audio,
Requirements: 120V-60Hz/ 240V/ 50Hz switchable , 15 watts
Weight: 6 kg
Dimensions: 450 x 320 x 100mm
Integrated Amplifiers

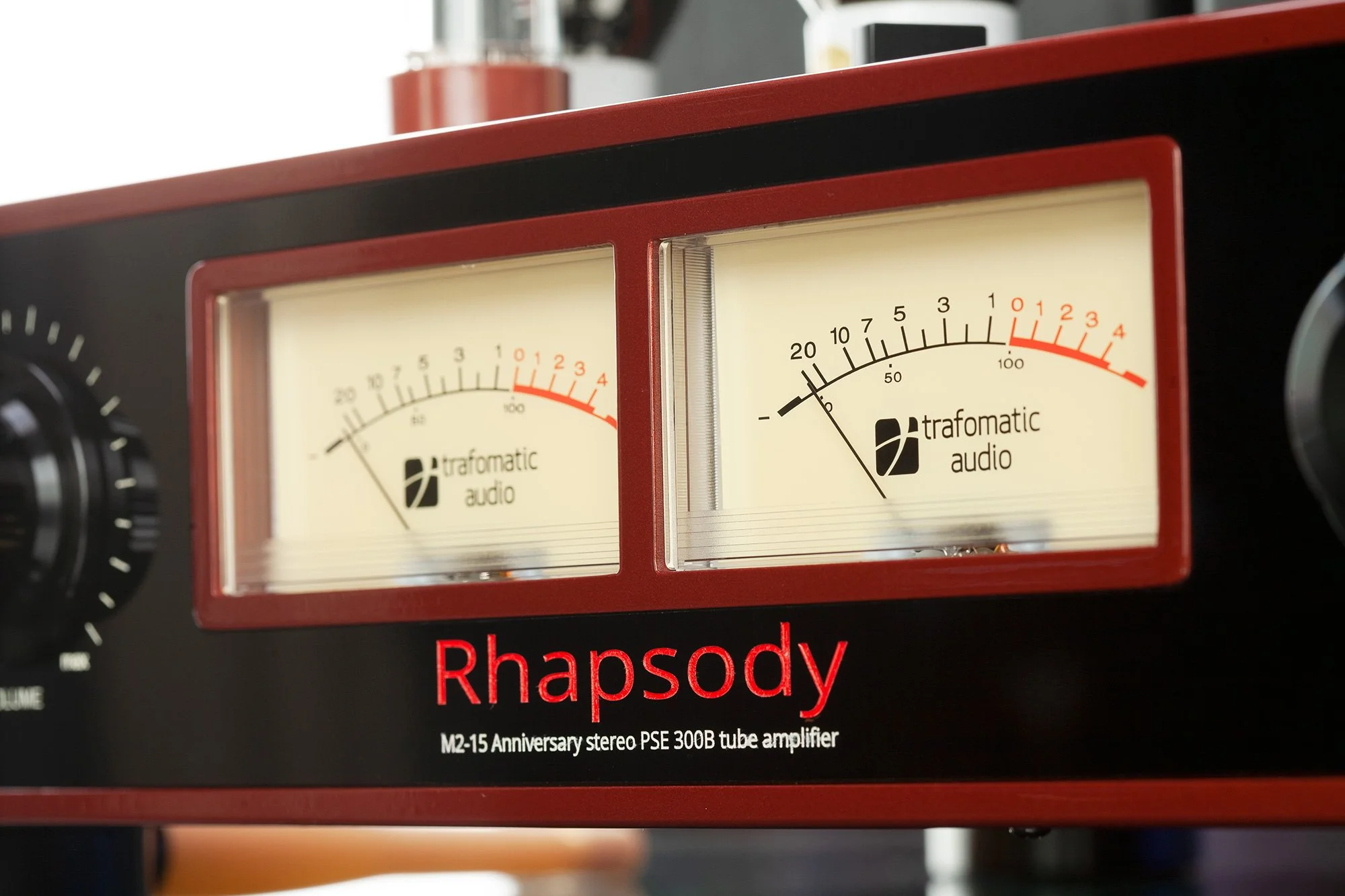

Rhapsody
Integrated Amplifier
The newest Trafomatic Audio High End Integrated PSE Amplifier
Definitely something for the 300B enthusiasts to drool over
Rhapsody is the pinnacle of our decades of experience in developing State of the art valve amplifiers.
The name itself is the expression of our devotion to the Music and the Art.
By definition it implicates the profound roots and legacy to the ancient Greek Art of the rhapsodists in performing Epics, to the most modern compositions, where the one-movement work structure of highly contrasted moods, colours and tonality, is expansive and yet unified in structure.
The 300B valves are a piece of great audio history that are represented in the Rhapsody in the best and most refined way. The naturalness, the drive, their tonality and rich colour pallets are unmistakable. All of those virtues are combined and moved a step further by Trafomatic dedication into the deep understanding of the cyrcuit. The result is a endlessness adventure in discovering undisclosed hidden places in your favorite recordings.
Is this the real life?
Is this just fantasy?
By Frederick Mercury – The Queen
Technical specifications
Output power: 2x20W
Class of operation: Parallel Single- Ended (class A)
Tubes complement: 4x 300b, 2x 6SN7
Inputs: 3xRCA + 1xXLR
Outputs: 4 – 8 ohm
Input sensitivity: 0.5V rms THD %: 0.55% – 1W
Frequency bandwidth: 10Hz-75KHz (-3dB)
S/N Ratio: 80dB
Input impedance: 100K
Power consumption: 280VA
Input voltage: 230V/50Hz( 100-120-220-240V available on request)
Size: 470×370 x260mm
Weight: 32kg
EOS
Integrated Amplifier
The EOS integrated amplifier is the most powerful integrated amplifer in the Trafomatic Audio productions. It is constructed as push-pull using well known KT120 output tubes.
Output power is 100W per channel, which is sufficient for most speakers, even those with lower than average sensitivity.
This is a integrated amplifer and doesn’t requiring preamplifer. Based on previous work on negative feedback, -6dB reaction has been tuned to provide sound equivalent to a good Single Ended application. Cathode feedback was used as the most musical one. Bass is well controlled, dynamic response is excellent and this amplifer belongs to the very top of its class.
Well designed power supply made as separate unit utilizes 800VA toroidal transformer and C-L-C filter separated for each channel. Output transformers are based on a Double-C core configuration and Solen fast capacitors are used throughout. Adding well thought-out concept to the mix results in a recognizable high quality sound of our amplifiers.
The new modern styling of Trafomatic Audio amplifiers has been extended to this model as well,which makes a perfect sonic and visual fit with your room.
An excellent starting point for full immersion in good sound. See and hear for yourself.
Amplificatore integrato Trafomatic Audio EOS
L'amplificatore EOS si colloca al vertice dell'attuale produzione della Trafomatic Audio, quale integrato piu' potente in assoluto. Configurazione push-pull con le note valvole KT120 della Tungsol agli stadi di uscita e con una potenza di 100 W per canale l'EOS e' in grado di pilotare egregiamente qualsiasi sistema di casse acustiche, comprese quelle con una sensibilita' al di sotto della media.
Il design interno, basato sulle precedenti esperienze di feedback negativo, e' stato ulteriormente raffinato per conseguire il suono di un ottima applicazione Single Ended. Con una gamma bassa estesa e ben controllata, unita ed una risposta dinamica e dei transienti senza pari, l'EOS appartiene alla rarefatta sfera di elettroniche top a livello mondiale.
L'alimentazione esterna utilizza un trasformatore toroidale da 800VA, filtri C-L-C sovradimensionati e separati per ogni canale. I trasformatori di uscita sono del tipo Double-C core, con tipologia interna basata sul utilizzo esclusivo di condensatori Solen.
Il design esteriore rispecchia le recenti linee della casa, quale oggetto di rara bellezza ed emissione sonora. Il nuovo look ne' facilita la collocazione sia negli ambienti classici, integrandosi perfettamente in quelli moderni, facendo del EOS un icona, destinato a diventare un classico nel mondo Hi-End. Come per tutte le elettroniche Trafomatic Audio, e' prevista la possibilita' di un ulteriore personalizzazione del design esterno, in modo da avvicinarsi alle preferenze ed esigenze dei singoli clienti, dando origine ad elettroniche uniche ed esclusive.
Technical specifications:
Output power: 2x100W
Class of operation: Push-Pull (Class A)
Tubes complement: 4xKT120 Tungsol, 2x 6N6P(ECC99), 2x5687
Inputs:3xRCA, 1xXLR
Tubes protect: Acrylic front glass
Outputs: 4 and 8 ohms
Input sensitivity: 0.6Vrms
THD %: 0.03% -1W/1KHz, 2%-100W/1KHz
Frequency bandwidth: 10Hz(-1dB)-100KHz(-1dB)
S/N Ratio: 82dB
Input inpedance: 100K
Power consuption: 500VA
Input voltage: 230V/50Hz
(100-120-220-240V available on request)
Size: 450x350x230mm
Weight: 25kg amplifier + 11kg power supply box
Evolution One
Integrated Amplifier
The Evolution One is one of the finest products in its class. Single Ended topology, no-negative feedback, Double-C core output transformers and top-notch power supply are just some of the ambitious specifications that Trafomatic Audio established as a de-facto standard for their amplifiers. With its design and sound quality the Evolution One will represent an easily recognizable style. It will bring a new dimension to your listening pleasures.
Check out why!
Description:
Balanced wood and metal elements give the Evolution One very attractive appearance with dominant elegant and modern look, positioning the whole Evolution series at the top of the world class products.
High quality output transformers built around Double-C geometry and 220VA EI M6 power transformer dominate the top plate of the amplifier. Oversized filter chokes inside underline quality construction throughout the unit. Vacuum tube rectifiers go without mentioning: direct heated rectifier 5U4G occupies central position in the tube lineup. Driver tubes are ECC81 coupled to the output stage via Solen fast capacitors. Power stage consists of two 2A3 EH gold grid tubes (one per channel). This specific variety has been chosen for increased dissipation capability and better musicality due to reduced third harmonic distortion.
Output power is 4W, therefore higher sensitivity speakers are recommended (95dB or higher). Gold plated robust input and output terminals are standard on every Evolution One amplifier.
The amplifier is available for every input voltage option (100-120-220-230-240Vac) and is equipped with standard IEC connector.
ALPS volume control, Solen coupling capacitors, high reliability Aluminum Electrolytic capacitors and other quality parts ensure that sound quality is maintained throughout the amplifier’s life.
Technical Specifications:
Class of operation: Single-Ended
(class A)
Output power: 2 x 4W
Tubes complement: 2x 2A3 EH gold grid, 2x ECC 81 , 1x 5U4G
Inputs: 4x RCA
Outputs: 4 and 8 ohms
Input sensitivity: 1Vrms
THD: 0.85% @ 1W/1kHz; 2.3% @ 4W/1kHz
Frequency bandwidth: 10Hz-46kHz
S/N Ratio: 75dB
Input impedance: 100 kohm
Input voltage: 230V/50Hz – 115V/60Hz switchable
Power consumption: 150VA
Size: 450x320x215mm
Weight: 22kg

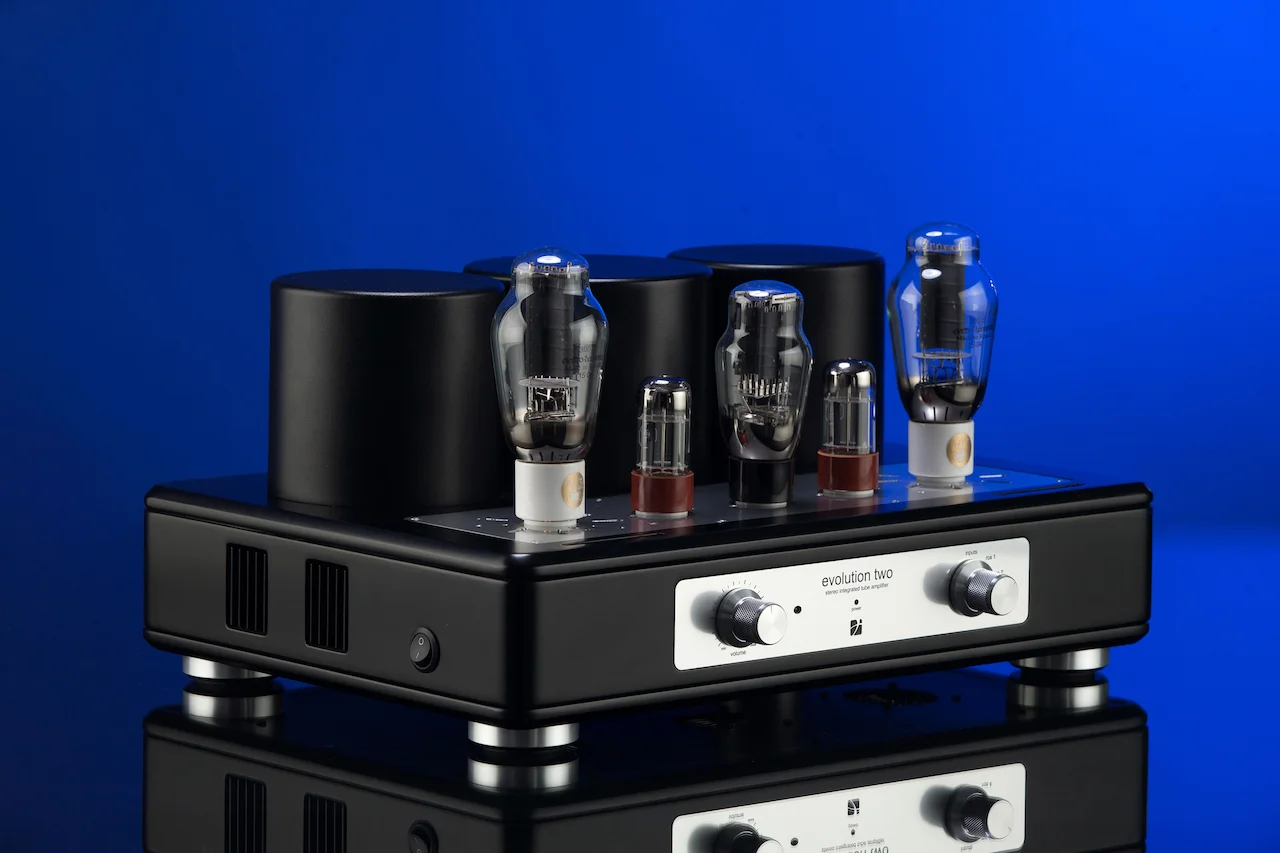

Evolution Two
Integrated amplifier
EVOLUTION TWO What can 8 watts of pure tube power deliver? A musical joy, palpable musical of 300B
Meet the all new Trafomatic Audio Evolution Two integrated amplifier. As with recent refreshment of all of our products the Evolution Two Integrated amplifier is gaining the subtle and core updates, that pushes the sound of these iconic triode tube even further.
300B tube is among most beloved triode valves and we know it’s dealings from inside out. After decades of refining and tweaking our circuits we’re presenting something utterly refreshing.
Evolution Two is continuing the path of exploring our propriety direct heated circuit with no global feedback.
Evolution Two integrated amplifier is all about purity and preservation of the original music material. We’ve managed to established unique sound performance, that derive the audio virtues form the iconic 300B tube, while keeping the natural vibrancy intact.
We’re proud to be among few high-end audio companies, that goes beyond mirroring eschewed tube design. Trafomatic is all about innovation and taking the daring steps further into the 21st century, where every little thing matters.
When it comes to the parts we still offer the best beng for the buck; Nipon Chemi- Con type electrolytic, Solen fast coupling capacitors, , Van de Hul internal wiring , tube rectification and C-L-C choke type of regulation puts Evolution Two on a completely different platform.
Forget about everything else if you’re in quest for the pure triode bliss. We know how to reach sonic zen. We’re gazing its glory daily for a long time…
Technical Specifications:
Class of operation:
Single- Ended (class A)
Output power: 2x8W
Tubes complement: 2x 300B EH gold grid , 2x 6SN7 , 1x 5U4G
Inputs: 4 x RCA
Outputs: 4 and 8 ohms
Input sensitivity: 0.5Vrms
THD %: 0.55% – 1W, 5% – 8W
Bandwidth: 10Hz-60KHz( -3dB)
S/N Ratio: 75dB
Input inpedance: 100K
Power consuption: 190VA
Input voltage: 230V/50Hz – 115V/60Hz Switchable
Size: 450x320x215mm
Weight: 22kg

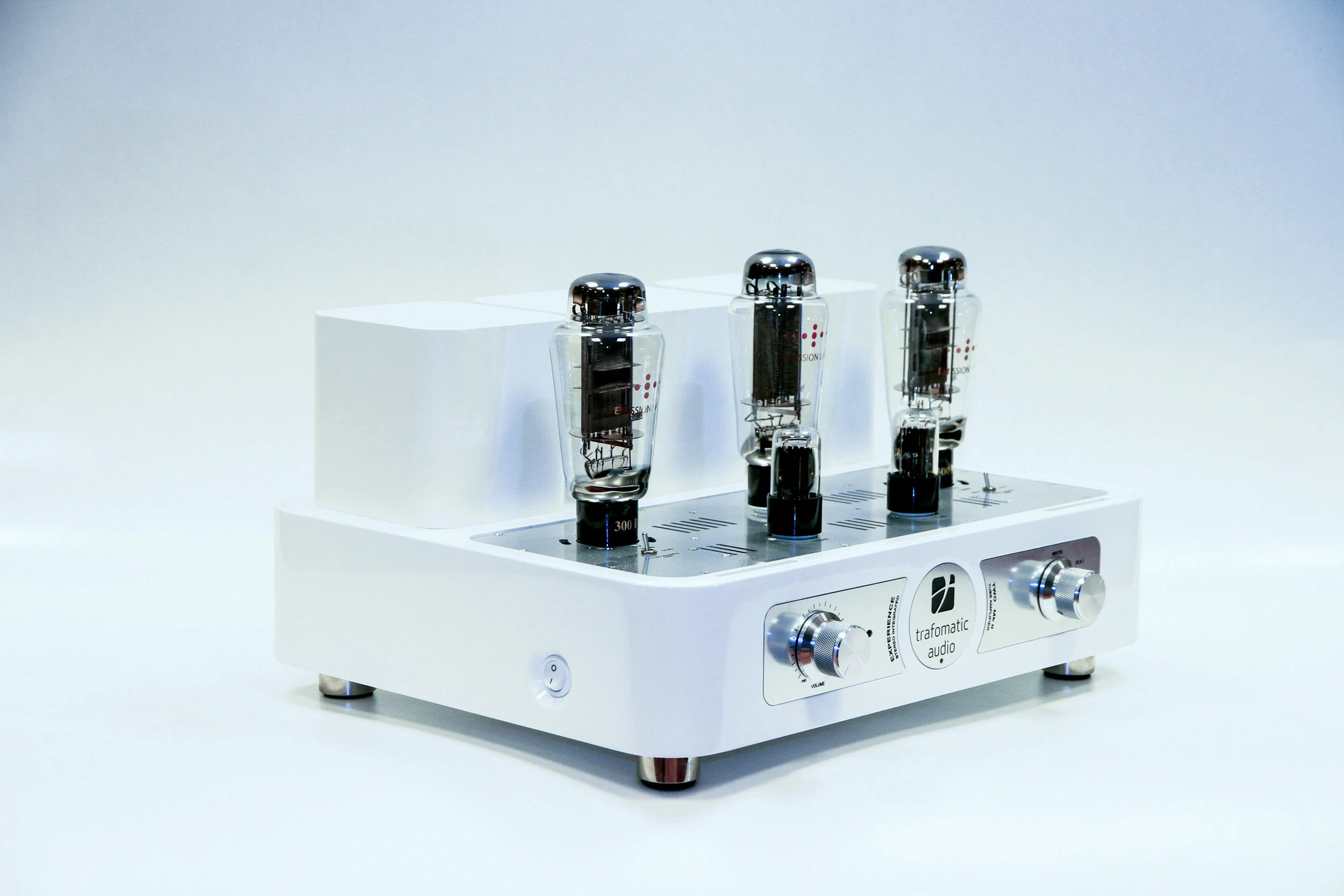

Experience Two MK II
Integrated amplifier
At Trafomatic Audio we never sit still and rest on the past glories. As technology moves forward we’re searching for the new solutions and refinements that can push the sound and performance further on and closer to the real musical experience. Even the smallest change can evoke a drastic change in the sonic behavior and while it’s easy to introduce new things, objectively elevating the original product to the higher plane is quite a task for any audio designer.
Experience Two MK II – Tube Integrated Amplifier is a step forward into the realms of pure triode sound. With no global negative feedback and direct-heated circuit, we’ve still believe how 300B remains both unique and fantastic sounding tube with no proper matching. When it comes to the purity there is very narrow path to be taken with the tube selection and 300B still holds the glories throne. Every tube connoisseur will cherish Mundorf MLytic HV type , point to point wiring, Van de Hul internal wiring and more.
Experience Two MK II implements special C-L-C-L -C three choke type or regulation where one choke cover both channels with additional two taking care of left and right signal path separately. We’re proud about our ways of doing things resulting in an uncompromising sound performance, following the real musical DNA. And that is what Experience Two MK II is all about: Purity and uncompromising experience.
About 300B tubes: Trafomatic Audio is one of the very few manufacturers who does understand the 300B story. As we probably all know, it once started with the Western Electric 300B, a true mesh grid 300B tube: copied by many, succeeded only by a few. The reason it is so hard to make these tubes nowadays is the Mesh Grid Anode, woven wires which gives the true 300B sound: open, detailed and rich, very rich. Several manufacturers claim to deliver 300B’s with a mesh grid, but at the end these are nothing more than plates with some wholes punched in. Not even close to a real Mesh Grid:
– a mesh grid-
– a punched plate grid-

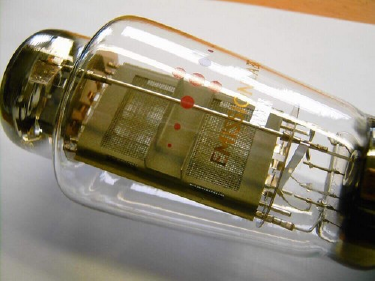

One of the very few manufacturers of true Mesh Grid 300B tubes is Emission Labs. With these tubes you get the true 300B sound. Amazingly sounding, and when used correctly build to last like forever. Any downsides? Yes, there is one (or maybe 2 if you consider the price…)!
To replace a 300B by the Emission Labs 300B-Mesh, be sure the mesh tube is run at following conditions:
Recommended: 22 Watt Plate dissipation.
Absolute maximum: 28 Watt Plate dissipation.
This is 70% of what is done with standard 300B in most of the cases.
– the EML 300Bmesh –
– the mesh/solid switch –
We at Trafomatic Audio took building our Experience Two mk II one step further: it is prepared for these amazing tubes, you simply need to switch a toggle, and you are there!
Technical Specifications:
Class of operation: Single- Ended (class A)
Output power: 2x8W
Tubes complement: 2x 300b, 2x 6SN7, 1x 5U4G
Inputs: 4xRCA (Optionally 2xRCA , 1xXLR)
Outputs: 4 – 8 ohm
Input sensitivity: 0.5V rms THD %: 0.55% – 1W, 5% – 8W
Frequency bandwidth: 10Hz-65KHz (-3dB)
S/N Ratio: 80dB
Input impedance: 100K
Power consumption: 190VA
Input voltage: 230V/50Hz( 100-120-220-240V available on request)
Size: 450×350 x230mm
Weight: 24kg
Premise Evolution
Integrated Amplifier
The Premise Evolution stereo tube amplifier is continuing the legacy of highly regarded and awarded Premise integrated amplifier, that was inspired by our renowned and iconic Kaivalya monoblock power amplifiers.
By each year market demands more refined and better performing products and we felt, that is was about time to refresh the Premise. Premise Evolution brings updated/upgraded circuits and topology.
It operates in Pure Class A, Push Pull regime, Triode/AB Ultra-linerar mode with a healthy output of 2x25W. Four Tungsol EL84 tubes per channel ensure enough energy to engage any speakers in a normal listening environment.
Premise Evolution also gained all new propriety standby auto circuit, that both save and prolonged the life of EL84 tubes.
Premise Evolution its all about purity and musical potency. All the knowledge and technical advancements, that we’re gaining throughout the development our custom, cost no object projects are being infused into the Premise Evolution. On top of it all, Premise Evolution represent the new era of high-end audio integrated amplifiers,that offer luxurious feeling and engaging performance at more then reasonable price.
Technical Specifications:
Class of operation:
Push Pull class A Triode/ AB Ultra-linerar mode – switchable
Output Powe : 2x25W
Standby mode
Tubes complement: 8 x EL84 Tungsol, 2 x ECC81
Inputs: 4 x RCA
Outputs: 4 , 8 ohms
Input sensitivity: 0.85Vrms
THD: 0.25% – 1W/1KHz
Bandwidth: 10Hz (-1dB) – 60KHz (-3dB)
S/N ratio: 88dB
Input impedance: 100K
Power consumption: 250VA
Input voltage: 230V/50Hz -115/60Hz Switchable
Size: 450 x 320 x 195 mm
Weight: 22kg
Elegance Evolution
Integrated Amplifier
The Elegance Evolution stereo push -pull integrated amplifier is a successor of highly regarded and awarded Experience Elegance integrated amplifier.
Both, the design and topology follows natural progression and highest demands of the high end audio market.
State of the art, no—compromise power supply and oversized output transformers (wound on Double-C cores) characterize the Elegance Evolution integrated amplifier as another definitive audiophile product.
Description: The Elegance Evolution integrated amplifier combines the output stage of our most powerful Evolution series amplifier with input switching and a passive buffered attenuator (ALPS) driven by remote control.
The class AB power stage in ultra-linear mode produces 50 watts per channel from a quartet of push-pull connected 6550 (KT88). Manual setting of bias of each 6550 is new feauture and give possibility to adjust bias on even no matched output tubes.
A small amount of cathode feedback lowers the output impedance and ensure excellent bass control and dynamics. All new power supply greatly benefits from an oversized, proprietary Trafomatic Audio 300VA toroidal transformer, C-L-C filtering and Rubycon electrolytic capacitors.
Excellent sound was achieved with the high-quality double C-core output transformers and exclusive Solen (fast caps) in the signal path.
Elegance Evolution integrated amplifier was designed from ground up to satisfy both demanding audiophiles and music lovers. It can drive speakers from 88dB with authority, refinement and emotional impact.
Elegance Evolution brings potent and emotional involving performance in a premiere package and at best value.
L'amplificatore integrato Elegance Evolution è il successore del pluri premiato ed acclamato Experience Elegance.
Entrambi, sia il design che la tipologia, sono una progressione naturale della linea precedente, rivolti alle piu' alte richeste del mercato audiofilo.L'impiego di circuiti di alimentazione e trasformatori di uscita sovradimensionati ed allo stato dell'arte (doppio C Core), fanno del Evolution Elegance un prodotto audiofilo definitivo e senza compromessi.
Descrizione:
L'amplificatore integrato Elegance Evolution adotta lo stadio di uscita più potente della serie Evolution con ingresso di commutazione ed un attenuatore passivo (ALPS) azionato tramite telecomando.
Lo stadio di potenza in classe AB e modalità ultra-lineare garantisce un emmisione di 50 watt per canale da un quartetto di valvole 6550 in modalita'push pull . L'impostazione manuale del circuito BIAS permettere inoltre la regolazione di ogni singola valvola di uscita, consentendoun eventuale sostituzione delle stesse anche se non accoppiate.
L'adozione di una minima quantità di feedback, che riduce l'impedenza di uscita, garantisce un eccellente controllo delle basse frequenze ed una esemplare risposta dinamica. Il nuovo alimentatore beneficia di un trasformatore toroidale sovradimensionato da 300VA di esclusiva adozione della Trafomatic Audio , filtraggio C-L-C e condensatori elettrolitici Rubycon.
L'eccellente suono, che contradistingue tutti i prodotti della Trafomatic audio, è stato raggiunto con l'adozione di trasformatori in uscita di alta qualità doppio C-core e degli esclusivi condensatori Solen nel percorso del segnale.
L'amplificatore integrato Elegance Evolution è stato interamente riprogettato per soddisfare gli audiofili più esigenti e gli amanti della musica. E 'in grado di pilotare altoparlanti con un efficenza di 88dB con autorità, raffinatezza e impatto emotivo, il tutto con un rapporto qualita'-prezzo altamente competitivo.
Technical Specifications:
Class of operation: Push-Pull (class AB)
Output Power: 2x50W
Tubes complement: 4x 6550 Tungsol , 2x ECC82 , 2x ECC81
Inputs: 4x RCA
Outputs: 4 – 8 ohms
Input sensitivity: 0.8 Vrms
THD %: 0.03% – 1W/1KHz, 3% –50W/1KHz
Frequency bandwidth: 10Hz(-1dB) – 45KHz( -3dB)
S/N Ratio: 84dB
Input inpedance: 100K
Power consumption: 250VA
Input voltage: 230V/50Hz( 100-120-220-240V available on request)
Size: 450x320x195mm
Weight: 22kg
HEADPHONE AMPLIFIERS
Primavera
Headphone Amplifier
Primavera is the reborning in our lifes cicles. It’s the time when we celebrate the season of renewal and regrowth. The brand new Primavera heaphone amplifier from Trafomatic audio is precisely this, a new, fresh approach for the most intimate listening, and is here to stay for all the years around. During the immersion in the musical message, the richness of colours, the smells, the clouds, the sun, and dirt are there, all of the emotions are exposed, for our amusement. Capable of driving even the most demanding loads, it’s striking design sets the Primavera as a pure objet d’art, an icon in the rarefied world of Hi-End.
Technical specifications:
Single ended DHT amplifier
Output tubes: Svetlana 811-10
Drive tubes: 6S45P
Output impedances: 25 , 50 , 100 , 300 and 600 ohms
Inputs : XLR and RCA
Outputs : 3 pins XLR for Left and Right channel , 4 pins XLR stereo output and 1/4′ output
Output power: 10W/50 Ohms
Welcome to the true tube Realm

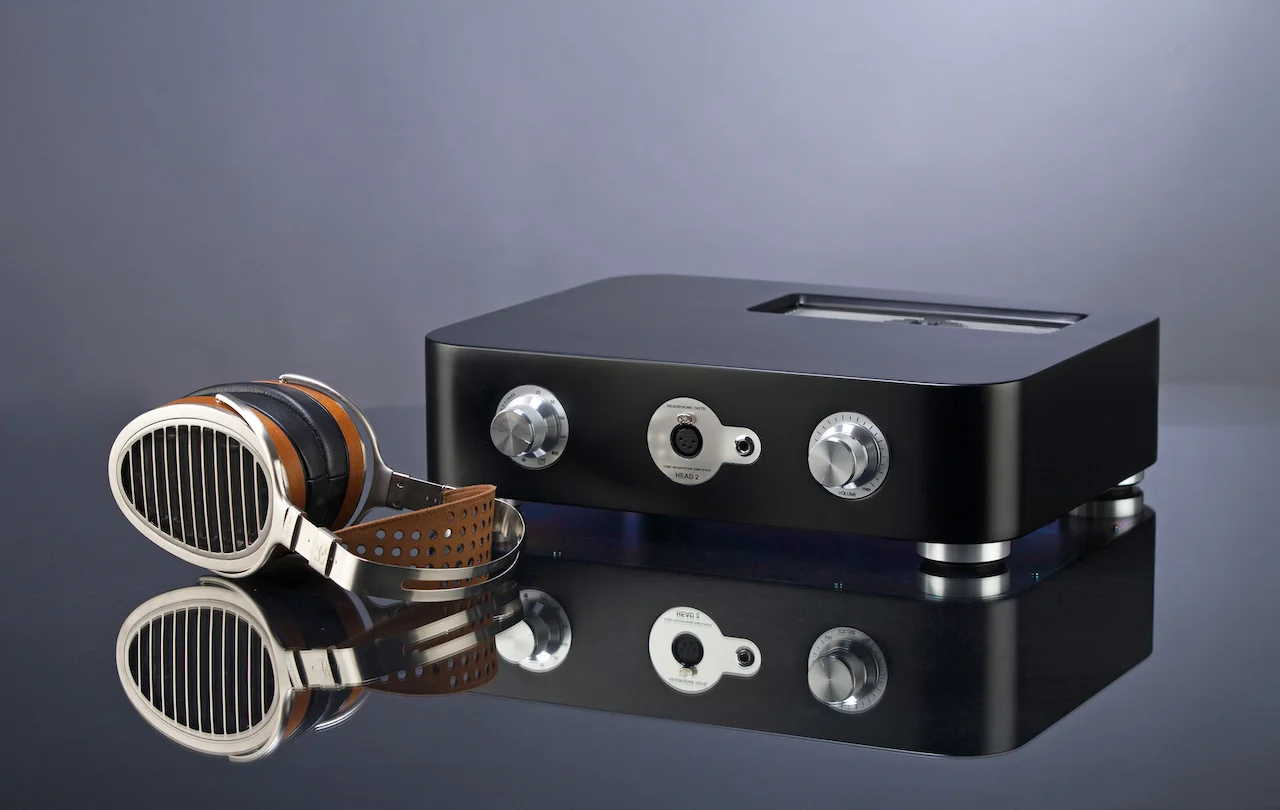

Head 2
Headphone Amplifier
The Head 2 is a Class-A Push Pull circuit design . This is the second headphone amplifier in Trafomatic Audio production coming after very sucefull model Experience Head One. 3dB of feedback and 100% tube amplification delivery 2W into 50 Ohms .It’s tubes have been hand-picked based on their long established reputations for sonic virtue.
The ‘overbuilt’ power supply features robust multi-stage high-voltage ltering, for superior low-frequency performance.
A proprietary output stage with II C core output transformers accommodates a wide range of headphone impedance from 25-600 Ohms.
The Head 2 drives many pairs of headphones with no sacrice to delity and with ease. This is the ideal amp for shared listening sessions. The Head 2 also working as great tube preamplier capable to drive all power amplier even with very low input impedance.
The Head 2 features uncompromising quality in build and design throughout.
A timeless design built to last a lifetime and deliver an unmatched sonic.
Technical specifications:
Tubes: 1 x 6N30P and 1 x ECC88 per channel
Input voltage: 230V/115 AC selectable by switch
50/60Hz - 100VA -
Consumption: 60VA
Output impedance: 25 - 50 - 100 - 300 and 600 ohms
Output impedance as preamplifier: RCA puts - 6 ohms, XLR outs - 25 ohms
Gain: 26 dB
Maximum output power on headphone output: 2W into 50 ohms
THD at 0.5W/1kHz: 0.2%
Outputs as line preamplifier: XLR + RCA
Output for headphones: Neutrink Combo, XLR + 1/4"
Inputs: AUX, XLR + RCA
Input sensitivity: 0.5Veff - Input impedance: 47Kohm
Frequency bandwidth: headphone and line out 10Hz ( -1dB) - 80KHz ( -3dB)
S/N: 88 dB
Accessories
Tesla
Power Cord
The Trafomatic Audio Tesla Power Cord features Copper Oxygen Free conductors and is terminated with high quality 24K Gold plated connectors.
Tesla is a shielded power cord suitable for large power supply pre-amps and amplifiers.
Oxygen-free copper (OFC) conductors
Strong shielding against in and outwards radiation of electromagnetic and radio frequency interference.
Oyaide™ 24k Gold Plated High End Connectors
Power conditioners

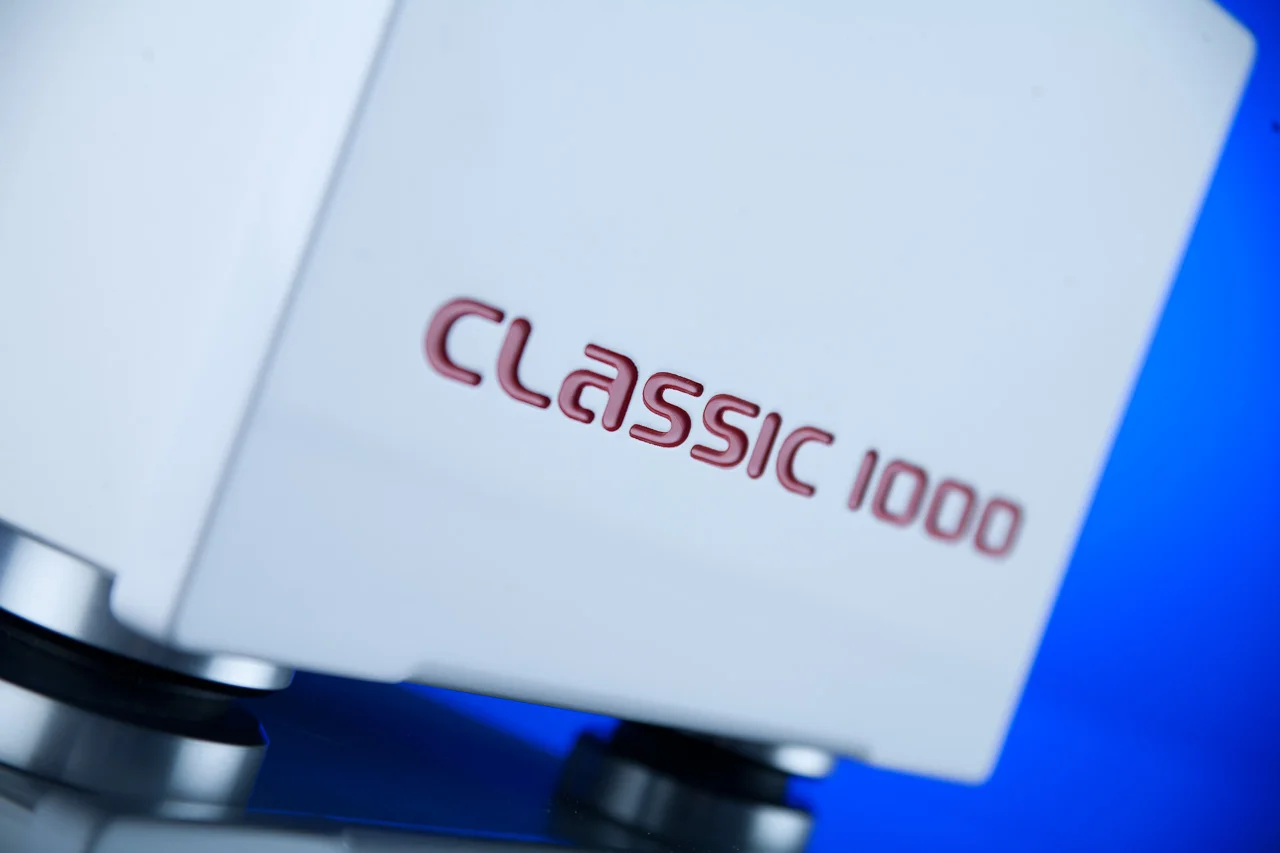

Classic 1000
Classic 1000 – power conditioner
Trafomatic Audio’s Classic 1000 power conditioner uses narrow-band transformer coupling from a custom 1200VA toroid to filter out unwanted AC line harmonics.
At 250Hz, attenuation already is 10dB, at ultrasonic frequencies in the 100kHz band, it is a very significant 45dB. The Classic 1000 offers outlets for six components
Technical specifications:
Output Power: 1000W
Shukos Number: 6
Dimensions: 27 x 30 x H17 cm
Weight: 20kg
Classic 500
Trafomatic Audio’s Classic 500 power conditioner uses narrow-band transformer coupling from a custom 800VA toroid to filter out unwanted AC line harmonics.
At 250Hz, attenuation already is 10dB, at ultrasonic frequencies in the 100kHz band, it is a very significant 45dB. The Classic 500 offers outlets for three components.
Technical specifications:
Output power: 500VA
Shukos Number: 3
Dimensions: 15 x 30 x H 20 cm
Weight: 14kg
