Rogoz Audio manufactures specialist anti-vibration furniture: audiostands, speaker stands, and platforms. Our offer is aimed primarily at audiophiles, music lovers, and music business professionals, as well as all those who appreciate high quality of sound and design. Our ultimate goal is creating products eliminating interference between audio components to make it possible for every audio system to reach its maximum effectiveness so that the listeners will enjoy the best possible sound quality.
The furniture and anti-vibration accessories are designed for top quality audio components. A whole structure has been tuned by means of special blending of alloy steel and high carbon content steel. Decoupling and high-precision leveling is achieved by means of adjustable anti-vibration spikes. Some furniture incorporates soft anti-vibration pads to separate parts of the overall structure.
A unique feature of our company is extreme flexibility. Certain modifications are possible and as a result each product is manufactured on a made-to-order basis. Alterations of our standard products are priced individually. Possible changes involve:
• all sizes
• the kind of frames of audio and speaker stands
• the kind of tops and shelves of audio stands
• the shape of speaker stand tops
• the kind of decoupling
• colors
AUDIO STANDS / RACKS
Rogoz Audio stands are designed for top quality audio components. They are tuned by special blending of alloy steel and high carbon content steel. High-precision leveling is achieved by means of adjustable antivibration spikes. To satisfy our customer's needs, we can modify our stands according to individual requests. It is possible to alter the frame size and color and select a different kind of shelves.
Rogoz Audio Price List
ROGOZ AUDIO ANTI-VIBRATION AUDIO STAND BBS
The audio stand structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
The Balancing Board System
BOARD BALANCING INVOLVES HORIZONTAL PLANE MOVEMENT IN ALL DIRECTIONS
ANTI-VIBRATION AUDIO STAND TRIO/BBS
3-level, three-legged modular stand, with multi-layer shelf structure. The shelves are covered with natural wood veneer (in the version shown, it is high gloss olive wood).
The legs have a multi-layer structure (in the version shown, they have black glossy piano finish). The double shelves are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components.
All modules are separated from each other by means of adjustable anti-vibration spikes. The stand consists of three separate modules and can be expanded by adding extra modules.
TECHNICAL DESCRIPTION : Overall height: 790 mm; Overall width: 730mm; Overall depth: 740 mm; Leg profile: 120 x 120 mm; Top shelf: 670 x 680 x 30 + 30 mm; Center and bottom shelves: 530 x 580 x 30 + 30 mm; Usable distance between the shelves (moving upwards): 230, 230 mm; Maximum load for each shelf: up to 80 kg (total: 240 kg)
A COMPLETE SET INCLUDES: 1 stand; 9 height-adjustable spikes BBS between shelves 3 massive anti-scratch disks protecting the floor
ANTI-VIBRATION AUDIO STAND QUARTET/BBS
2-level, four-legged, modular stand, with multi-layer shelf structure. The shelves are covered with natural wood veneer (in the version shown, it is high gloss olive wood). The legs have a multi-layer structure (in the version shown, they have black glossy piano finish). The double shelves are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components. All modules are separated from each other by means of adjustable anti-vibration spikes. The stand consists of three separate modules and can be expanded by adding extra modules.
The audio stand structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137 Pending). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
TECHNICAL DESCRIPTION : Overall height: 580 mm; Overall width: 1320mm; Overall depth: 740 mm; Leg profile: 120 x 120 mm; Top shelf: 1260 x 680 x 30 + 30 mm; Center and bottom shelves: 1120 x 580 x 30 + 30 mm; Usable distance between the shelves (moving upwards): 340 mm; Maximum load for each shelf: up to 100 kg (total: 200 kg)
A COMPLETE SET INCLUDES : 1 stand; 8 height-adjustable spikes BBS between shelves 4 massive anti-scratch disks protecting the floor
ANTI-VIBRATION AUDIO STAND 4SPW3/BBS
3-level, four-legged stand with glossy piano white finish shelves. The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast).The frame color: black (matt, fine grain). The top shelf is 50 mm thick with sandwich structure and is optimal for analog gramophones and digital signal sources. The middle and bottom shelves are 40 mm thick and have a similar structure.
All the shelves are separated from the stand frame by the Balancing Board System. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 803 mm; Overall width: 665 mm; Overall depth: 590 mm; Leg profile: steel pipes (Ø 76.1 mm – front, Ø 60 mm – back); Top shelf: 665 x 590 x 50 mm; Center and bottom shelves: 500 x 530 x 40 mm; Usable distance between the shelves (moving upwards): 307, 207 mm; Maximum load for each shelf: up to 150 kg (total: 450 kg); Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame; 3 shelves; 4 height-adjustable spikes; BBS under each shelf; 4 massive anti-scratch disks protecting the floor
ANTI-VIBRATION AUDIO STAND 4SPB3/BBS
3-level, four-legged stand with glossy piano black finish shelves. The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The frame color: piano black (glossy). The top shelf is 50 mm thick with sandwich structure and is optimal for analog gramophones and digital signal sources. The middle and bottom shelves are 40 mm thick and have a similar structure.
All the shelves are separated from the stand frame by the Balancing Board System. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 803 mm; Overall width: 665 mm; Overall depth: 590 mm; Leg profile: steel pipes (Ø 76.1 mm – front, Ø 60 mm – back); Top shelf: 665 x 590 x 50 mm; Center and bottom shelves: 500 x 530 x 40 mm; Usable distance between the shelves (moving upwards): 307, 207 mm; Maximum load for each shelf: up to 150 kg (total: 450 kg); Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame; 3 shelves; 4 height-adjustable spikes; BBS under each shelf; 4 massive anti-scratch disks protecting the floor
A Stand with Class : Regardless of the loudness level, the stand has a tremendous impact on the stereophonic sound, which suddenly becomes extremely accurate. [...] The most spectacular effect is achieved for the bass. [...] Although the invoked sound of thunder is an example outside of music, high speed is still necessary to provide real resemblance of the sound of the drums, as this is a typically transient and it is this transience of sound that is vastly improved with the Rogoz stand. [...] The Rogoz Audio stand provides unexpectedly significant improvement of a sound system quality.

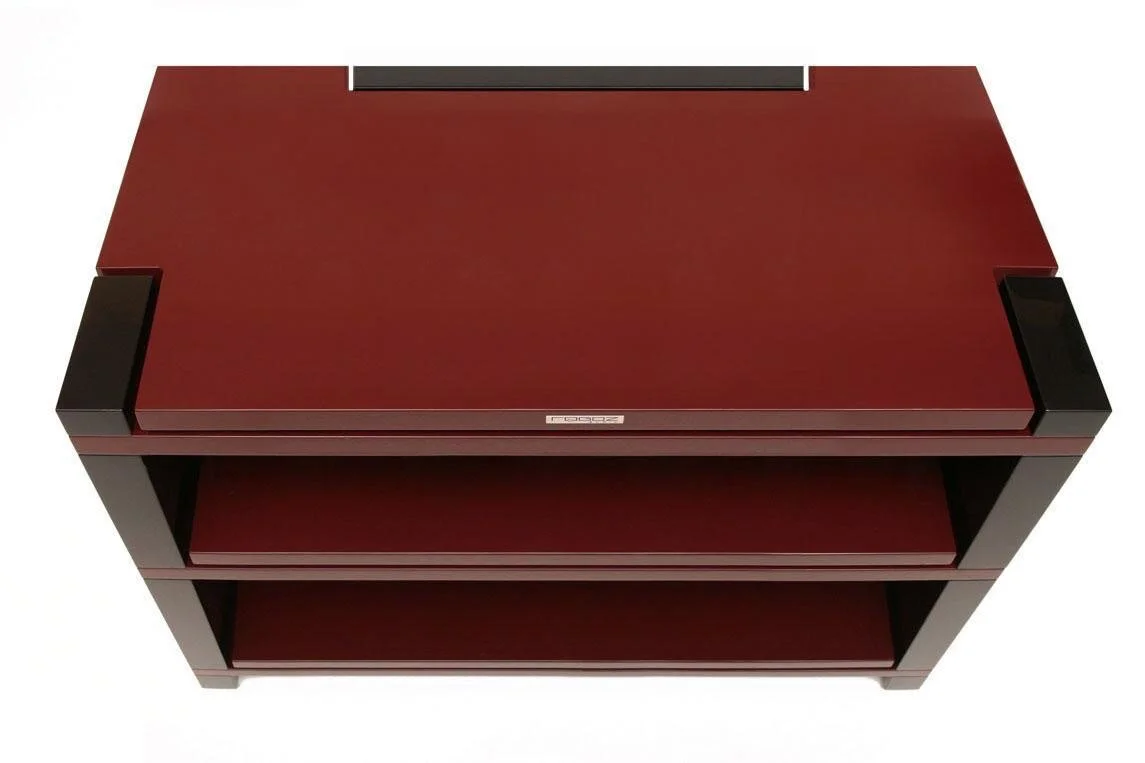

ANTI-VIBRATION AUDIO STAND 3RP3/BBS
3-level, three-legged stand with glossy piano finish. Double shelves 2 x 30 mm thick are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components.
The audio stand structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
TECHNICAL DESCRIPTION : Overall height: 825 mm; Overall width: 620 mm; Overall depth: 560 mm; Leg profile: 165 x 60 mm; Top shelf: 480 x 560 x 30 + 30 mm; Center and bottom shelves: 480 x 490 x 30 + 30 mm; Usable distance between the shelves (moving upwards): 307, 207 mm; Maximum load for each shelf: up to 100 kg (total: 300 kg)
A COMPLETE SET INCLUDES : 1 stand; 3 height-adjustable spikes BBS between shelves 3 massive anti-scratch disks protecting the floor

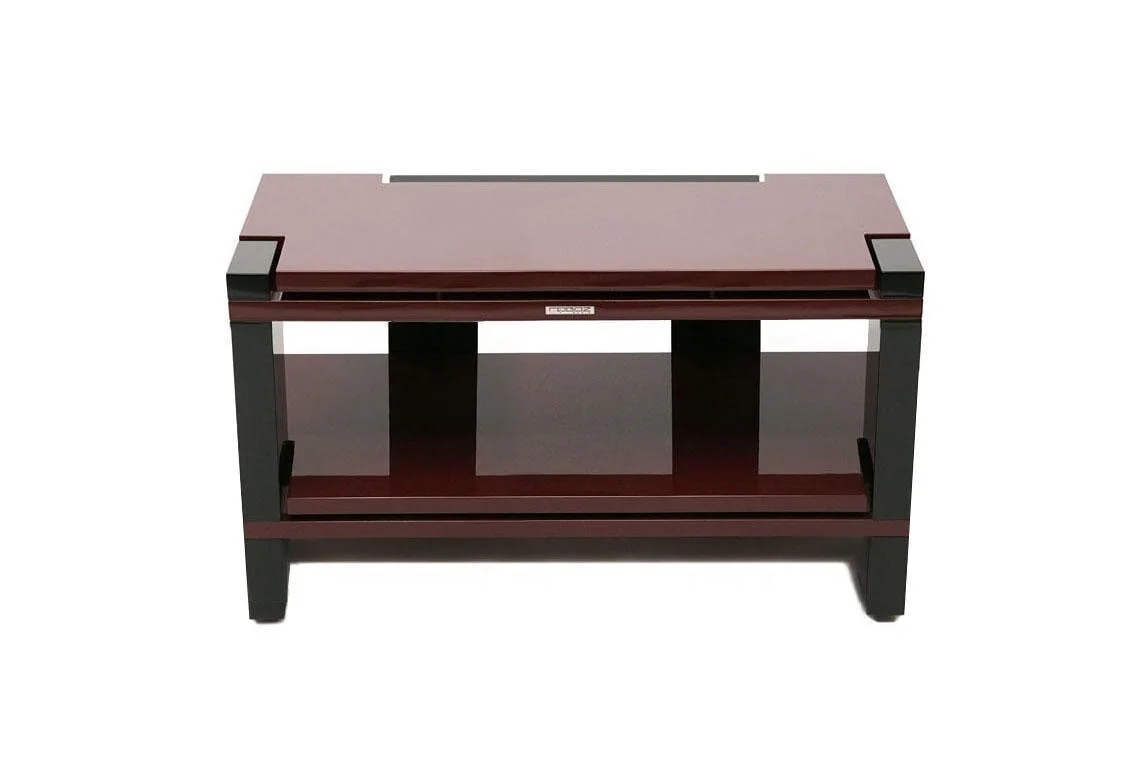

ANTI-VIBRATION AUDIO STAND 4RP2/BBS
2-level, four-legged stand with glossy piano finish. Double shelves 2 x 30 mm thick are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components.
The audio stand structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
TECHNICAL DESCRIPTION : Overall height: 684 mm; Overall width: 1100 mm; Overall depth: 560 mm; Leg profile: 165 x 60 mm; Top shelf: 960 x 560 x 30 + 30 mm; Center and bottom shelves: 960 x 490 x 30 + 30 mm; Usable distance between the shelves (moving upwards): 300 mm; Maximum load for each shelf: up to 100 kg (total: 200 kg)
A COMPLETE SET INCLUDES :1 stand 4 height-adjustable spikes BBS between shelves 4 massive anti-scratch disks protecting the floor
Each instrument and each sound seemed to be finer, more prominent and more polished. All of it sounded more exquisite. Consequently, the scene between the speakers deepened and it was possible to define the apparent sound sources with greater precision. [...] The bass became faster and more precise, and the highest tones seemed more polished. In terms of the overall effect, the scene and precision improved.
ANTI-VIBRATION AUDIO STAND 4RP3/BBS
3-level, four-legged stand with glossy piano finish. Double shelves 2 x 30 mm thick are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components.
The audio stand structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137 Pending). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
High Fidelity main award - BEST OF THE BEST AUDIO VIDEO SHOW 2015 : Studer + Chord + Cabasse + Pro-Ject + Cardas + Rogoz Audio. "The Voice system with the master-tape copy, played on a Studer 807 tape recorder, was a revelation. Listening to the Beatles then, one could understand what people complaining about digital sound really had in mind, and no one has replicated this with digital recordings yet. One of the sound features of the Audio Show was the Voice system, based on Chord products which we had tested, including a RED Reference One MkIII CD player (the test results to be published in December). The speakers used were Cabasse Pacific 3 SA. Three elements constituted sound sources: a Pro-Ject RPM 9 Carbon gramophone, a Chord DAVE DAC, and a Studer 807 tape recorder. All these were placed on a Rogoz Audio stand. [. . . ] One of the important elements of the Voice sound system was a Rogoz Audio stand, created by Mr. Janusz Rogoż (in the photo).”
ANTI-VIBRATION AUDIO STAND 5SPW2/BBS
2-level, five-legged stand, pictured in glossy piano white finish shelves. The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The frame color: piano white (glossy). The top shelf is 50 mm thick with sandwich structure and is optimal for analog gramophones and digital signal sources. The bottom shelf is 40 mm thick and have a similar structure.
All the shelves are separated from the stand frame by the Balancing Board System. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 458 mm; Overall width: 1600 mm; Overall depth: 590 mm; Leg profile: steel pipes (Ø 76.1 mm – front, Ø 60 mm – back); Top shelf: 1600 x 590 x 50 mm; Bottom shelves: 1420 x 530 x 40 mm; Usable distance between the shelves (moving upwards): 270 mm; Maximum load for each shelf: up to 200 kg (total: 400 kg); Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame2 shelves 5 height-adjustable spikes BBS under each shelf 5 massive anti-scratch disks protecting the floor
ANTI-VIBRATION AUDIO STAND 4SPB4/BBS
4-level, four-legged stand with glossy piano finish shelves (natural sappele mahogany veneer; dyed wood: No. 25-25) The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The frame color: satin black. The top shelf is 50 mm thick with sandwich structure and is optimal for analog gramophones and digital signal sources. The middle and bottom shelves are 40 mm thick and have a similar structure. All the shelves are separated from the stand frame by the Balancing Board System.
BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 1046 mm; Overall width: 1150 mm; Overall depth: 700 mm; Leg profile: steel pipes (Ø 76.1 mm – front, Ø 60 mm – back); Top shelf: 1150 x 700 x 50 mm; Center and bottom shelves: 985 x 640 x 40 mm; Usable distance between the shelves (moving upwards): 300, 200, 200 mm; Maximum load for each shelf: up to 150 kg (total: 600 kg); Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame 4 shelves 4 height-adjustable spikes BBS under each shelf 4 massive anti-scratch disks protecting the floor
After a while, we realised that this was because of the improved subtlety of reverbs, which were not cut off so quickly. The music acquired smoothness and colour, and, even though it seems contradictory, became even more detailed. Apart from the improvements in the colour, the music scene also expanded. The level of detail in locating the musicians within the scene remained similar, but the surrounding area seems to have grown bigger.
ANTI-VIBRATION AUDIO STAND 5SMX
X-level modular stand (11-modular version presented here) with 40 mm thick black finish shelves. The frame color is black (matt, fine grain). The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast).
The structure consists of two kinds of separate modules (A and B). The structure consists of individual modules, which can be placed vertically (one on top of another) or side by side. The modules are separated by means of height-adjustable spikes and anti-vibration pads. The original set may be expanded by adding extra modules. Upon customer request, it is possible to change the number of modules, their size and color, and the kind of decoupling. Module A consists of a shelf supported by a frame with three round legs, which have one-sided (left- or right-sided, depending on which option is selected) handles of a system used to assemble B modules. Module B consists of a shelf supported by a flat frame, which is to be assembled between two A-type modules (one of which needs to have right-sided handles, and the other left-sided ones).
TECHNICAL DESCRIPTION (version presented here) : Maximum height - 1133 mm; Overall width: - 1650 mm; Overall depth: - 540 mm; Leg profile: steel pipes (Ø 76 mm – front/back); Top shelves: (A modules) - 640 x 540 x 40 mm; Top and lower shelves (B modules) - 350 x 540 x 40 mm; Lower shelves (A modules): 470 x 460 x 40 mm; Usable distance between the A modules (moving upwards) - 310, 190, 190 mm (the order of modules may be changed); Usable distance between the B modules (moving upwards) - 310, 190 mm (the order of modules may be changed); Ballast: quartz sand; Net weight - 160 kg; Maximum load for each A module - up to 80 kg (total: 640 kg); Maximum load for each B module - up to 25 kg
A COMPLETE SET INCLUDES (version presented here): 8 steel frames of the A module 3 steel frames of the B module 11 shelves 36 height-adjustable spikes 36 massive separating pads Upon customer request, it is possible to change the number of modules, their size and color, and the kind of decoupling.
ANTI-VIBRATION AUDIO STAND 5SMX12/BBS
X-level modular stand (12-modular version presented here) with 40 and 50 mm thick shelves covered in natural wood veneer (birch burl) . The frame color is golden brass. The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The structure consists of two kinds of separate modules (A and B). The structure consists of individual modules, which can be placed vertically (one on top of another) or side by side. The modules are separated by means of height-adjustable spikes and anti-vibration pads. The original set may be expanded by adding extra modules. Upon customer request, it is possible to change the number of modules, their size and color, and the kind of decoupling. Module A consists of a shelf supported by a frame with three round legs, which have one-sided (left- or right-sided, depending on which option is selected) handles of a system used to assemble B modules. Module B consists of a shelf supported by a flat frame, which is to be assembled between two A-type modules (one of which needs to have right-sided handles, and the other left-sided ones).
There was an improvement of the sound's purity and transparency, and a better detail retrieval and more colorful presentation were noticeable when the Vertere landed on this rack. This improvement was primarily a result of a “blacker” background, or in other words of the lower background noise level, which is difficult to notice itself but impacts our perception of music. With both turntables on top of Rogoz I tried thumping and jumping around the rack to check whether or not it would influence playback. It didn't, which proved a good isolation from even significant vibrations this rack provided. I did a test with two tube preamplifiers too - my ModWright LS100 and Air Tight ATC-2. Placing them on 5SMX12/BBS shelves resulted on one hand with deepened saturation of sound that seemed even more natural, organic, on the other hand improved control and precision of presentation.
With both turntables on top of Rogoz I tried thumping and jumping around the rack to check whether or not it would influence playback. It didn't, which proved a good isolation from even significant vibrations this rack provided. I did a test with two tube preamplifiers too - my ModWright LS100 and Air Tight ATC-2. Placing them on 5SMX12/BBS shelves resulted on one hand with deepened saturation of sound that seemed even more natural, organic, on the other hand improved control and precision of presentation.
High Fidelity, No.149 November 2016
TECHNICAL DESCRIPTION (version presented here) : Maximum height - 1158 mm;
Overall width: - 1814,4 mm; Overall depth: - 550 mm; Leg profile: steel pipes (Ø 76 mm – front/back); Top shelves: (A modules) – 662,2 x 550 x 50 mm; Lower shelves (A modules): 490 x 460 x 40 mm; Top shelves (B modules) - 490 x 550 x 50 mm; Lower shelves (B modules) - 490 x 550 x 40 mm; Usable distance between the A modules (moving upwards) - 300, 180, 180 mm (the order of modules may be changed); Usable distance between the B modules (moving upwards) - 300, 180, 180 mm (the order of modules may be changed); Ballast: quartz sand; Net weight - 160 kg; Maximum load for each A module - up to 80 kg (total: 640 kg); Maximum load for each B module - up to 25 kg
A COMPLETE SET INCLUDES (version presented here) : 8 steel frames of the A module 4 steel frames of the B module 12 shelves 43 height-adjustable spikes 40 massive separating pads Upon customer request, it is possible to change the number of modules, their size and color, and the kind of decoupling.
ANTI-VIBRATION AUDIO STAND 4QG3
3-level, four-legged stand with 30 mm thick shelves covered in natural wood veneer (american walnut). The frame color: golden brass (glossy). Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 770 mm; Overall width: 1090 mm; Overall depth: 490 mm; Leg profile: 40 x 40 mm; Top shelf: 1090 x 490 x 30 mm; Middle and bottom shelves: 1005 x 450 x 30 mm; Usable distance between the shelves (moving upwards): 250, 250 mm; Maximum load for each shelf: up to 100 kg (total: 300 kg)
A COMPLETE SET INCLUDES : 1 steel frame; 3 shelves (MDF and wood veneer); 22 height-adjustable spikes; 18 anti-vibration separating disks; 4 anti-scratch disks protecting the floor
ANTI-VIBRATION AUDIO STAND 4SB2N
2-level, four-legged stand, with shelves covered in natural wood veneer (american walnut). The top shelf is optimal for analog gramophones and digital signal sources. The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The frame color: black (matt, fine grain). Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.

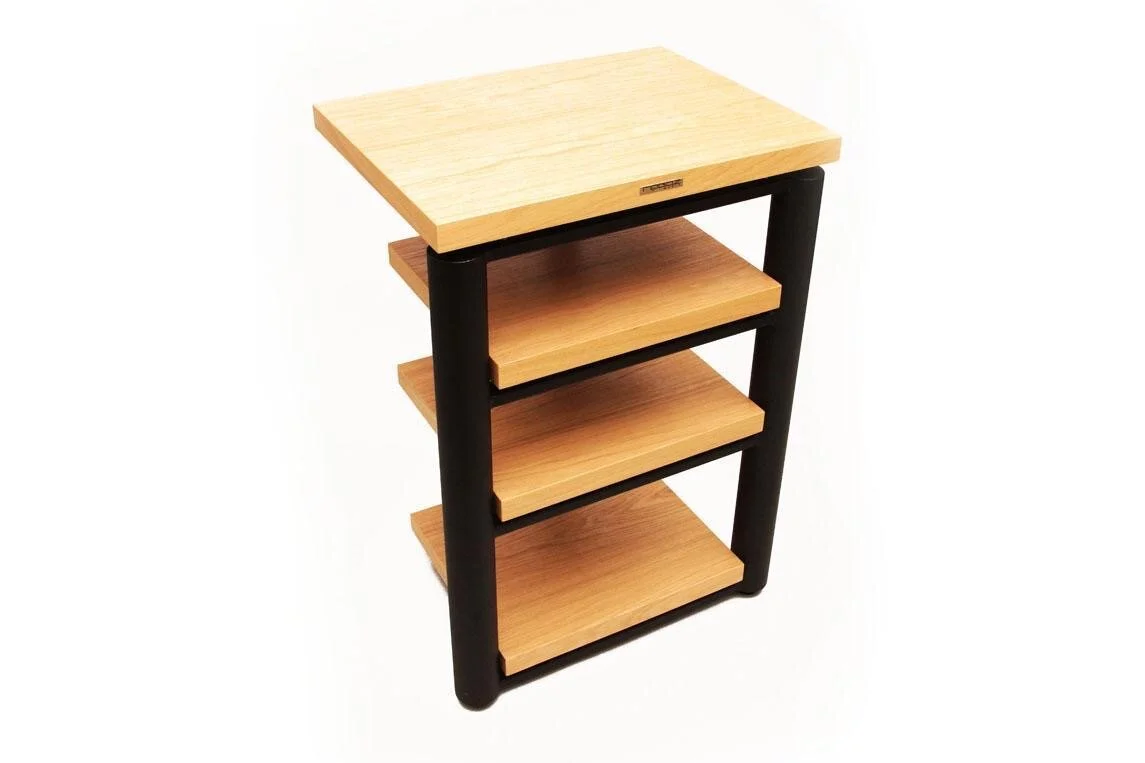

ANTI-VIBRATION AUDIO STAND 4SB4 MKII
4-level, four-legged stand, with shelves covered in natural wood veneer (oak). The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The frame color: black (matt, fine grain). Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 910 mm; Overall width: 640 mm; Overall depth: 490 mm; Leg profile: steel pipes (80 mm – front, 60 mm – back); Top shelf: 640 x 490 x 40 mm; Bottom shelves: 475 x 418 x 40 mm; Usable distance between the shelves (moving upwards): 260, 160, 150 mm; Maximum load for each shelf: up to 150 kg (total: 600 kg) Ballast: quartz sand
A COMPLETE SET INCLUDES: 1 steel frame; 4 shelves (MDF and wood veneer); 20 height-adjustable spikes; 16 anti-vibration separating disks; 4 massive anti-scratch disks protecting the floor Ballast: quartz sand
ANTI-VIBRATION AUDIO STAND 4SM3 MKII
3-level, four-legged stand with shelves covered in natural wood veneer (venge). The frame color is black (matt, fine grain). The structure consists of individual modules, which can be placed vertically (one on top of another) or side by side. The modules are separated by means of height-adjustable spikes and anti-vibration pads. The original set may be expandedby adding extra modules. Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
The sound has better structure, it is more focused and generally all these effects contribute to a more genuine, convincing musical presentation.
TECHNICAL DESCRIPTION : Maximum height (vertical): 1062 mm; Overall width: 640 mm; Overall depth: 540 mm; Leg profile: steel pipes (Ø 76 mm – front/back); Top shelf: 640 x 540 x 40 mm; Lower shelves: 470 x 460 x 40 mm; Usable distance between the shelves (moving upwards): 270, 270 mm (the order of modules may be changed); Maximum load for each shelf: up to 80 kg (total: 240 kg); Ballast: quartz sand
A COMPLETE SET INCLUDES : 3 steel frames; 3 shelves (MDF/wood veneer); 24 height-adjustable spikes; 12 massive separating pads

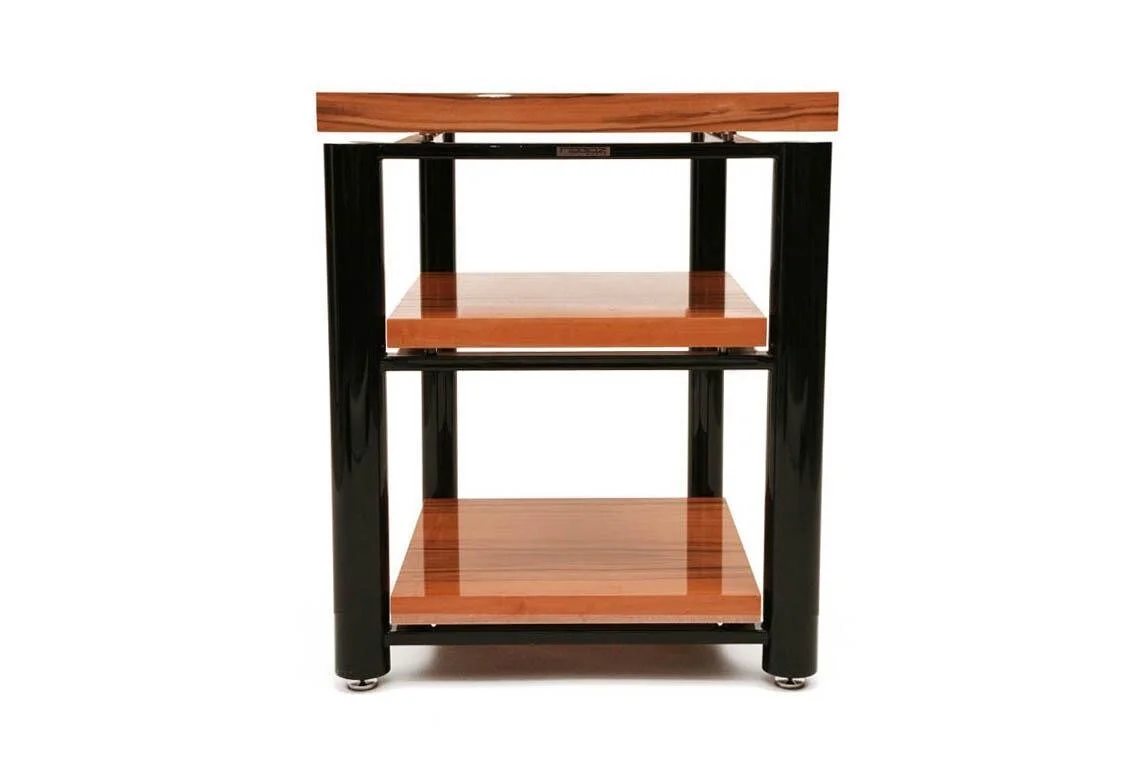

ANTI-VIBRATION AUDIO STAND 4SPB3
3-level, four-legged stand with 30 mm thick shelves covered in natural wood veneer (mahogany). The frame color: piano black (glossy). Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 770 mm; Overall width: 1085 mm; Overall depth: 450 mm; Leg profile: steel pipes (Ø 80 mm – front, Ø 60 mm – back); Top shelf: 1085 x 450 x 30 mm; Center and bottom shelves: 920 x 390 x 30 mm; Usable distance between the shelves (moving upwards): 280, 220 mm; Maximum load for each shelf: up to 150 kg (total: 450 kg)
A COMPLETE SET INCLUDES : 1 steel frame; 3 shelves (MDF and wood veneer); 16 height-adjustable spikes; 12 anti-vibration pads; 4 massive anti-scratch disks protecting the floor
ANTI-VIBRATION AUDIO STAND 4SPB3N MKII
3-level, four-legged stand with glossy piano finish shelves (natural tineo-indian apple veneer ).* The top shelf is optimal for analog gramophones and digital signal sources. The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The frame color: piano black (glossy). Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Overall height: 824 mm; Overall width: 665 mm; Overall depth: 590 mm; Leg profile: steel pipes (Ø 76.1 mm – front, Ø 60 mm – back); Top shelf: 665 x 590 x 50 mm; Center and bottom shelves: 500 x 530 x 40 mm; Usable distance between the shelves (moving upwards): 307, 207 mm; Maximum load for each shelf: up to 150 kg (total: 450 kg); Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame; 3 shelves; 16 height-adjustable spikes; 4 massive anti-scratch disks protecting the floor
ANTI-VIBRATION AUDIO STAND 4SPB3PB
3-level, four-legged stand with glossy piano black finish shelves. The frame contains quartz sand ballast (bolted holes in the legs make it possible to change the amount and kind of ballast). The frame color: piano black (glossy).* The top shelf is 40 mm thick with sandwich structure and is optimal for analog gramophones and digital signal sources. The middle and bottom shelves are 30 mm thick and have a similar structure. Back shelf corners are rounded. Anti-vibration stands are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
TECHNICAL DESCRIPTION : Total height: 780 mm; Overall width: 1085 mm; Overall depth: 445 mm; Leg profiles: steel pipes (Ø 80 mm - front, Ø 60 mm - back); Top shelf: 1085 x 445 x 40 mm; Middle and bottom shelves: 920 x 385 x 30 mm; Usable distance between the shelves (moving upwards): 310, 210 mm; Maximum load for each shelf: up to 150 kg (total: 450 kg); Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame; 3 shelves (plywood/wood veneer); 22 height-adjustable spikes; 18 soft anti-vibration pads; 4 massive anti-scratch disks protecting the floor
ANTI-VIBRATION PLATFORMS

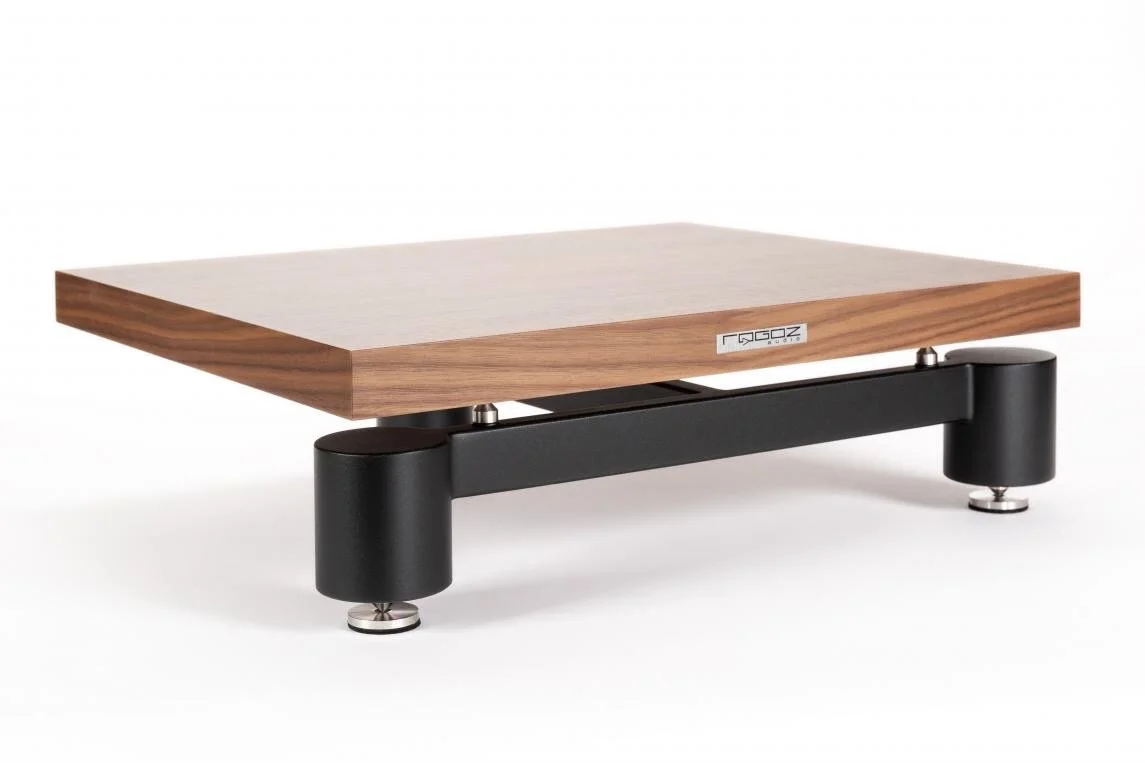

ANTI-VIBRATION PLATFORM 3SG40
Three-legged platform. The legs contain quartz sand as ballast. The frame color: black (matt, fine grain). The 40 mm thick top is made of wood (MDF), covered in natural wood veneer (walnut). Anti-vibration platforms are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
Rogoz Audio platform 3SG40 helps restore the right tempo, proportions and tonal balance – not just to some extent, but significantly.
TECHNICAL DESCRIPTION : Overall height: 170 mm Overall width: 550 mm Overall depth: 450 mm Leg profile: steel pipes Ø80 mm Platform top: 550 x 450 x 40 Maximum load: up to 150 kg Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame 1 platform top (MDF and wood veneer) 6 adjustable spikes 3 separating disks 3 massive anti-scratch disks protecting the floor
APPLICATIONS : CD players Analog gramophones Power amplifiers Integrated amplifiers Preamplifiers Loudspeakers
ANTI-VIBRATION PLATFORM 4SG50/BBS
Four-legged platform. The legs contain quartz sand as ballast. The 50 mm thick top is made of wood (MDF), covered in natural wood veneer (palisander). The shelf is separated from the stand frame by the Balancing Board System. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration platforms are designed for high end audio components. The frame has been tuned by a suitable combination of alloy steel and high-fiber content steel. The frame consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes) connected by crosspieces made from higher-strength alloy steel S355. Adjustable anti-vibration spikes are used for for high-precision leveling.
What improved in particular was the sound energy. Perhaps that is why I had an impression of abundance of everything – both high and low frequencies, mass and space. The sound grew and became more refined.
TECHNICAL DESCRIPTION : Overall height: 180 mm Overall width: 550 mm Overall depth: 450 mm Leg profile: steel pipes Ø80 mm Platform top: 550 x 450 x 50 Maximum load: up to 150 kg Ballast: quartz sand
A COMPLETE SET INCLUDES : 1 steel frame 1 platform top (MDF and wood veneer) 4 adjustable spikes BBS under the shelf 3 massive anti-scratch disks protecting the floor APPLICATIONS : CD players Analog gramophones Power amplifiers Integrated amplifiers Preamplifiers Loudspeakers
BOARD BALANCING INVOLVES HORIZONTAL PLANE MOVEMENT IN ALL DIRECTIONS Balancing Board System The platform structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
ANTI-VIBRATION AUDIO PLATFORM 3RP1/BBS
Anti-vibration platform with „sandwich” structure. Double shelves 2 x 30 mm thick are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Anti-vibration stands are designed for high end audio components. The audio platform structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137 Pending). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
ROGOZ AUDIO 3RP1/BBS ANTI-VIBRATION PLATFORM The GOLDEN ANALOG 2015 award is given for products which offer outstanding quality in their price range, and at same time raise standards for products in a given Hi-fi or High-end segment.
To sum up, the Rogoz Audio 3RP1/BBS platform performed spectacularly in both directions during the test. And there's no indulgence at all in this opinion, it was just perfect. I frankly admit, I had not expected that. I have nothing more to say other than that I'm all for the platform. The Rogoz platform, that is. The only thing left for me is to negotiate – maybe they'll let me keep it longer, of course for promotional purposes. That quite unlikely, but hey, a man can hope.
"RED Fingerprint award is given throughout the year to products which made an especially powerful impression on their reviewers. Unlike the Best Sound award, which is given by the whole editorial team, Red Fingerprint is a reviewer’s personal award not only to prove that the product is of topmost quality (a prerequisite for the award), but also to appreciate his personal encounter with it. The award is not common, there is one for every fifteen reviews. It is symbolized by a red thumb print, indicating that a High Fidelity reviewer has given the particular product his imprimatur."
This is the first anti-vibration platform, perhaps excepting Finite Elemente Pagode Edition HD-09, whose timbre was characterized by greater density and whose center of mass was located lower than in the pneumatic platform from Japan, which is my reference. Others, even the best ones, brightened the sound, thinning out the midrange to a lesser or greater degree. Those with top-notch construction design offered specific benefits such as enhanced selectivity and stronger attack, and as a result made the sound more open and dynamic. These are all good things. However, I always used to have a feeling that there was something missing. That feeling would soon pass, only to be replaced by curiosity and respect for the designers, but my awareness of it was still there. This time, respect was accompanied by the feeling of fulfillment. It was as if I had spotted a large piece of amber - on a beach, amongst tangled seaweed – emanating warm light.
TECHNICAL DESCRIPTION : Overall height: 142 mm Overall width: 600 mm Overall depth: 460 mm Leg profile: 165 x 60 mm Top shelf: 460 x 460 x 30 + 30 mm Maximum load: up to 100 kg
A COMPLETE SET INCLUDES : 1platform 4 height-adjustable spikes BBS between shelves 4 massive anti-scratch disks protecting the floor APPLICATIONS : CD players; analog gramophones; power amplifiers; integrated amplifiers; preamplifiers; other loudspeakers
ANTI-VIBRATION AUDIO PLATFORM FINALE/BBS
Anti-vibration platform with „sandwich” structure. Double shelves 2 x 50 mm thick and bases 70 mm thick are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Antivibration stands are designed for high end audio components.
The audio platform structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
The Finale / BBS platform improves resolution and differentiation, “darkening” and smoothing the sound. This is a high-end feature of the best high-end components and systems.
High Fidelity no. 185, October 2019
TECHNICAL DESCRIPTION : Overall height: 194 mm Overall width: 600 mm Overall depth: 460 mm Leg profile: sandwich MDF+MDF+HDF 70 mm thick Top shelf: sandwich MDF+MDF+HDF 600 x 460 x 50 mm Bottom shelf: sandwich MDF+MDF+HDF 600 x 460 x 50 mm Maximum load: up to 150 kg
A COMPLETE SET INCLUDES : 1platform 6 height-adjustable spikes double BBS between two shelves and three bases APPLICATIONS : CD players; Analog gramophones Power amplifiers Integrated amplifiers Preamplifiers Loudspeakers

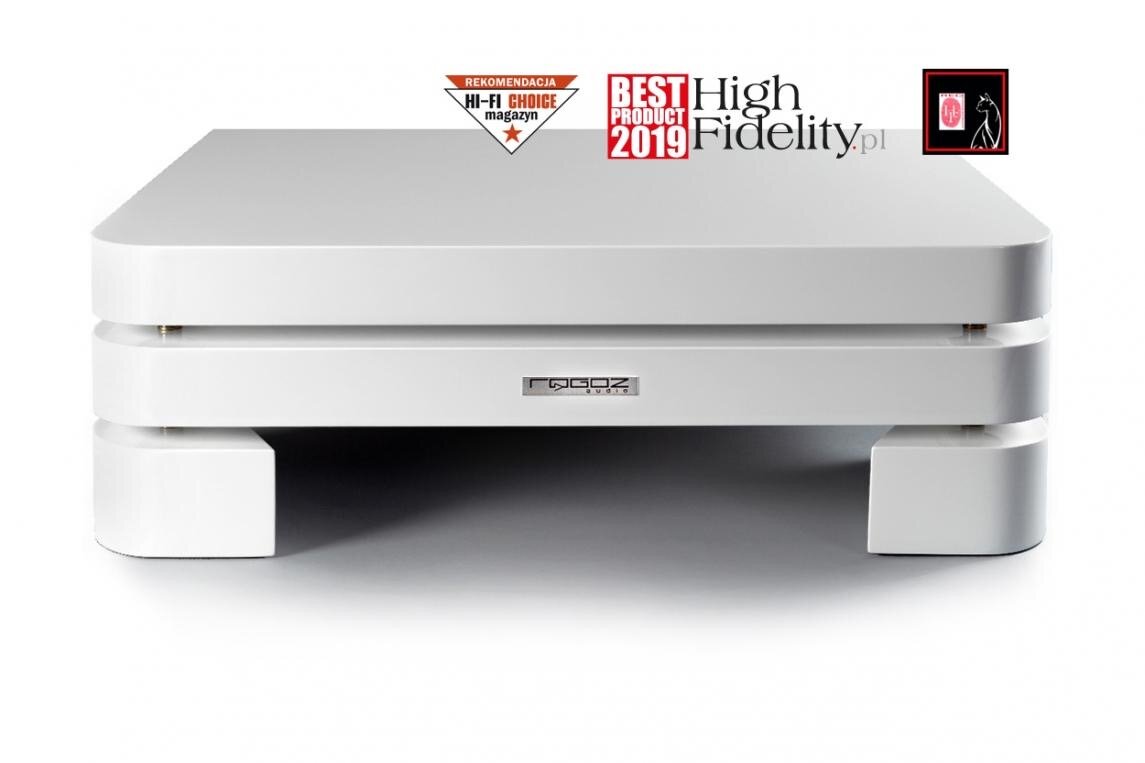

ANTI-VIBRATION AUDIO PLATFORM GRANDE FINALE / BBS
Anti-vibration platform with „sandwich” structure. Triple shelves 3 x 50 mm thick and bases 50 mm thick are separated by BBS. BBS has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the stand shelves. Antivibration platforms are designed for high endaudio components. The audio platform structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137).
The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf. Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion.
Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
The underside of the bottom shelf can be ordered in either of the following two versions: (a) fitted with six adjustable spikes and massive protective disks, enabling the platform to be placed firmly on soft or rough and coarse surfaces. (b) fitted with four wheels with two brakes The platform is designed for high end audio components. Its structure has been tuned by a suitable combination of MDF, HDF, steel components (INOX, A10X, NZ3), and carbon polymer.
The photographs show a platform designed for Studer A80 reel tape recorder.
On request, it can be altered to fit other audio equipment: CD players; Analog gramophones Power amplifiers Integrated amplifiers Preamplifiers Loudspeakers
TECHNICAL DESCRIPTION : Overall height: 202 mm Overall width: 700 mm Overall depth: 520 mm Leg profile: sandwich MDF+MDF+HDF 50 mm thick Top shelf: sandwich MDF+MDF+HDF 700 x 520 x 50 mm Middle shelf: sandwich MDF+MDF+HDF 700 x 520 x 50 mm Bottom shelf: sandwich MDF+MDF+HDF 700 x 520 x 50 mm Maximum load: up to 150 kg
A COMPLETE SET INCLUDES : 1 platform 4 height-adjustable spikes or 4 wheels with 2 breaks triple BBS between three shelves and four legs APPLICATIONS CD players; Analog gramophones Power amplifiers Integrated amplifiers Preamplifiers Loudspeakers
3T1/BBS ANTI-VIBRATION PLATFORM FOR SPEAKER, SIGNAL, AND POWER CABLES
The platform consists of two sandwich-type shelves, 30 and 25 mm thick, separated from each other at three points by BBS (Balancing Board System). The top of the platform is made of ash wood with glossy piano finish, which - depending on a customer's request - can be further darkened or colored (the photo shows "tineo indian apple" finish).
Kinematic and dynamic properties of BBS enable isolated masses to ‘float’ sideways relative to the system axis, maintaining point support at the same time. Furthermore, BBS makes it possible to level the platform. The platform is designed for high-end components. Its structure has been tuned by combining several materials: MDF, HDF, exotic wood, and steel elements (inox, A10X, NZ3), and carbon fibre.
The platform structure incorporates a new proprietary Rogoz Audio antivibration system, BBS (Balancing Board System, Patent P.404137). The system consists of a threaded, height-adjustable spike made of high-fiber-content steel alloy, on top of which two elements are placed, each with an inner bearing. An intermediary (middle) element is made of carbon fiber and supports another element, a steel bearing inserted into the shelf.
Point contact between the steel spike and the carbon intermediary element prevents movement of either element relative to its axis, but it allows pendular motion. Meanwhile, the contact between the intermediary element and the bearing inserted into the shelf allows restricted rolling motion and sliding motion. Consequently, the advantages of spike point support (contact area has been minimized and kinetic energy turns into heat) have been combined with the effects of deadening vibrations owing to to sliding friction and rolling resistance.
Overall, the message was precise and specific: the sound is better with the platforms. I was literally shocked upon hearing the first sounds “from the floor”, and immediately began to feel sorry that my joy of listening will diminish when I part with the Rogoz Audio 3T1/BBS platforms.
When the speaker cables were placed on the platforms, the sound became a bit tighter, closer and loaded. At the same time, my attention was drawn to inconspicuous elements present in many recordings, less noticeable without the platforms. The clarity and sonority of the trebles were also affected. When a piece was played that had some drums fun it in, both metal and wooden, their sound with cables on the platform was more sonorous, melodious and lighter, but not by being less loaded, but by resounding more easily. The better the recording and the more inconspicuous elements it contained, the better they were exposed by the 3T1/BBS.
The stabilizers make sound become deeper and more gentle. I think that it is about much better reproduction of small signals responsible for the attack and sound finish, as well as about the acoustic surroundings closest to the instruments. It can be heard as an addition of perspective and life to the sound. The former results from better saturation with little details. The sound seems deeper and a bit heavier. However, the effect of weighing down does not result from adding bass, but from greater naturalness of sound. We obtain very similar effects when a device is characterized by low distortion.
It is also very interesting how the shaping of the attack changes. Without the stabilizers, the sound is a little drier (this is less marked "personal" acoustics), and it is also less clear and seems softer. Normally it would be an advantage, as natural sound is not contoured and we do not pay attention to the attack – it is there and that’s it. However, here it is related to something a little different. Better defined sound with the stabilizers is more natural and it is not contoured at all. I would say that it is less fuzzy.
High Fidelity Wojciech Pacula October 2015 No. 137
TECHNICAL DESCRIPTION : Overall height: 70 mm; Overall width: 147 mm; Overall depth: 130 mm; Top shelf: 147 x 130 x 30 mm; Bottom shelf: 147 x 130 x 25 mm; A COMPLETE SET INCLUDES : 1 platform BBS between shelves APPLICATIONS: speaker cables; interconnects; power cables.
Depending on the circumstances (mainly on the length and type of cables), one or more platforms are used for each cable.
In some situations, one platform might be sufficient for two cable types (for example, speaker and signal cables), provided they do not touch each other.
ANTI-VIBRATION PLATFORM 6T2R1/BBS for TAD Reference One
Customizable to fit any other speaker, amplifire, gramophone,CD,Blue ray and other audio equipment
Anti-vibration platform 6T2R1/BBS has been designed for TAD Reference One loudspeaker. It is black with semi-matte finish. The platform consists of two shelves 80 and 70 mm thick, respectively, separated from each other at six points by BBS.
The Balancing Board System (BBS) has kinematic and dynamic qualities which enable isolated masses to “float” to the sides relative to the system axis, maintaining point support at the same time. BBS also makes it possible to level the platform. The underside of the bottom shelf can be ordered in either of the following two versions: (a) backed with a thick layer of felt, enabling the platform with a loudspeaker to slide across the smooth surface of the floor (for your convenience, three specially designed handles can be driven into the sockets situated on the sides of the bottom shelf); (b) fitted with six adjustable spikes and massive protective disks, enabling the platform to be placed firmly on soft or rough and coarse surfaces.
The anti-vibration platform 6T2R1/BBS can be customized (on request) to fit any speaker, amplifier, gramophone, CD/DVD/Blu-ray player or other audio equipment. The platform is designed for high end audio components. Its structure has been tuned by a suitable combination of MDF, HDF, steel components (INOX, A10X, NZ3), and carbon polymer.
TECHNICAL DESCRIPTION : Overall height: 165 mm; Overall width: 613.7 mm; Overall depth: 702.1 mm; Top shelf: 613.7 x 702.1 x 70 mm; Bottom shelf: 613.7 x 702.1 x 80 mm; Weight: 40 kg (190 kg including TAD R1 speaker); Maximum load: up to 200 kg.
A COMPLETE SET INCLUDES: 1 top shelf (MDF/HDF); 1 bottom shelf (MDF/HDF); 3 handles (INOX) 6 BBS sets.
APPLICATIONS: The platform is designed for TAD Reference One speaker. On request, it can be altered to fit other audio equipment: CD players; analog gramophones; power amplifiers; integrated amplifiers; preamplifiers; other loudspeakers
SPEAKER STANDS
Rogoz Audio stands are designed for top quality audio components. They are tuned by special blending of alloy steel and high carbon content steel. High-precision leveling is achieved by means of adjustable antivibration spikes. To satisfy our customer's needs, we can modify our stands according to individual requests. It is possible to alter the frame size and color and select a different kind of shelves.
1QR250 SPEAKER STANDS
Single-support anti-vibration stands with individually defined size specifications, designed for different types of speakers.
The photographs show a stand designed for KEF Reference 1 speakers.
The stands have thick-walled sandwich-type (MDF/HDF) legs covered in rosewood. Four 4 metric thread cores made of S235JR carbon steel run through them, connecting the legs with thick tops made of 12 mm S355 high-strength alloy steel.
The cores allow adjustment of compression and tensil force between the shelves and legs. The bottom shelves are equipped with adjustable anti-vibration spikes made of high silicon content NZ3 steel, as well as anti-scratch disks protecting the floor made of the same material.
SIZE AND COLOR CAN BE CHANGED ON CUSTOMER’S REQUEST
TECHNICAL DESCRIPTION : egs covered in rosewood (glossy piano finish) shelves color: black (matt, fine grain) Height: 644 mm Weight of a single stand: ca. 25 kg legs – full sandwich, MDF/HDF + 4 S235JR carbon steel cores top shelf – metal plate – size to be determined individually all-purpose version – 210 x 330 x 12 mm KEF Reference 1 version – 201 x 366 x 12 mm version designed for specific speakers – to be determined Bottom shelf: 308,32 x 409 x 12 mm Recommended speaker weight: up to 30 kg Maximum load (for one stand): 50 kg
A COMPLETE SET INCLUDES : One set consists of two stands. Each stand contains: 3 soft anti-vibration pads for the top shelf 4 anti-vibration spikes for the bottom shelf made of NZ3 steel with high silicon content 4 anti-scratch disks protecting the floor made of NZ3 steel with high silicon content

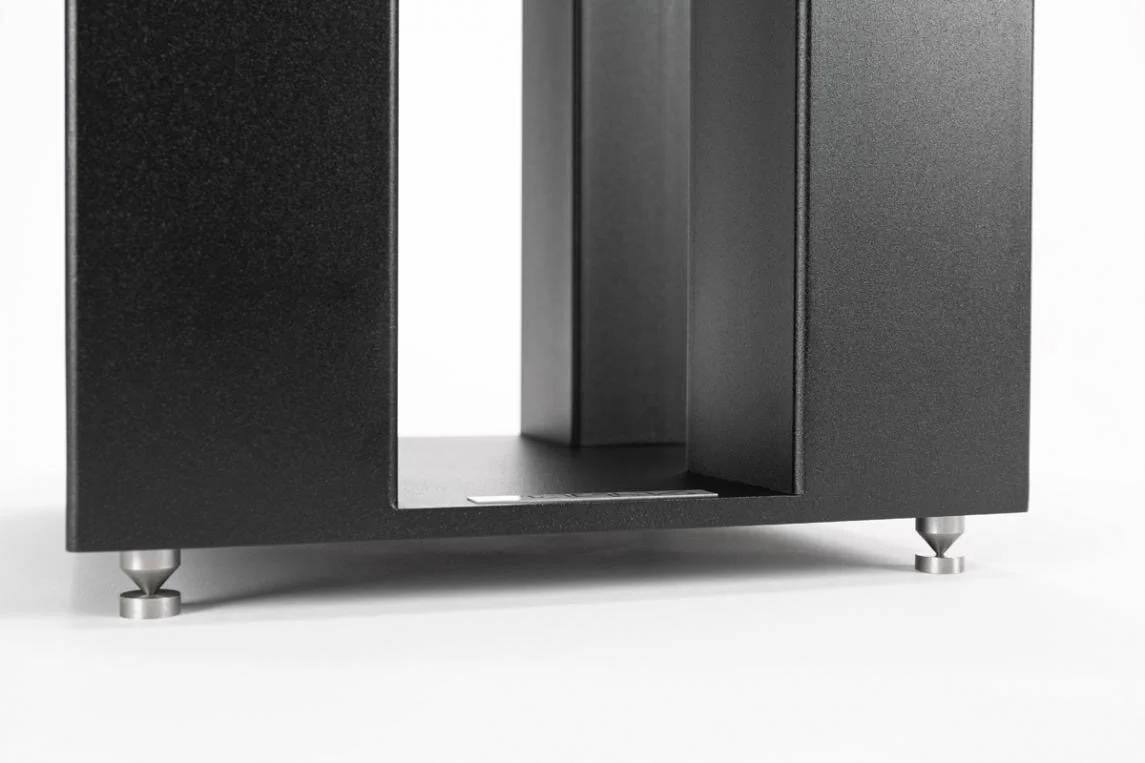

ANTI-VIBRATION SPEAKER STANDS 4QB80 MKII
Quadruple-support speaker stands, with individually defined size specifications, designed for high quality speakers (including all Harbeth models). The stands consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes), which have been connected by means of two techniques (TIG and muffling glueing) to thick shelves made from 8 mm higher-strength alloy steel S355.
Low tones seem to benefit the most from placing monitor speakers on Rogoz Audio 4QB80 stands, as it is these tones that acquire greater mass, power and clearer dimension. They are more robust, faster, and better defined – lowered and deepened.
TECHNICAL DESCRIPTION : Color: black (matt, fine grain) Height: 650 mm Weight of a single stand: ca. 25 kg without ballast, up to 40 kg with ballast Legs: 4 steel profiles 80/80 mm Top shelf: metal plate 180 x 240 x 8 mm Bottom shelf: metal plate 180 x 240 x 8 mm Recommended speaker weight: up to 130 kg Maximum load (for one stand): 300 kg
A COMPLETE SET INCLUDES: One set consists of two stands. Each stand contains: 4 bolts to close the ballast chamber (optionally, the chamber might be filled with quartz sand) 3 soft anti-vibration pads for the top shelf 4 height-adjustable anti-vibration spikes for the bottom shelf 4 anti-scratch disks protecting the floor
4QB80 SPEAKER STANDS FOR HARBETH -M30
Quadruple-support speaker stands, with individually defined size specifications, designed for Harbeth Monitor 30 Domestic speakers. The stands consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes), which have been connected by means of two techniques (TIG and muffling glueing) to thick shelves made from 8 mm higher-strength alloy steel S355.
TECHNICAL DESCRIPTION : Color: black (matt, fine grain) Height: 590 mm Weight of a single stand: ca. 20 kg without ballast, up to 40 kg with ballast Legs: 4 steel profiles 80/80 mm Upper shelf: metal plate 273 x 273 x 8 mm Bottom shelf: metal plate 273 x 273 x 8 mm Maximum load (for one stand): 300 kg Recommended speaker weight: up to 60 kg
A COMPLETE SET INCLUDES: One set consists of two stands. Each stand contains: 4 bolts to close the ballast chambers (optionally, the chambers might be filled with sand or lead shot); 4 spikes for the bottom shelf; 3 soft anti-vibration pads for the top shelf; 4 anti-scratch disks protecting the floor
The support can be modified to accomodate various tipes of loudseakers
4QB80 SPEAKER STANDS FOR HARBETH -M40
Quadruple-support speaker stands, with individually defined size specifications, designed for Harbeth Monitor 40 Domestic speakers. The stands consist of extra-strong legs made of carbon steel S235JR (which is used for load-bearing stuctures subject to heavy dynamic load, e.g. in cranes), which have been connected by means of two techniques (TIG and muffling glueing) to thick shelves made from 8 mm higher-strength alloy steel S355.
TECHNICAL DESCRIPTION : Color: black (matt, fine grain) Height: 323 mm Weight of a single stand: ca. 27 kg without ballast, up to 40 kg with ballast Legs: 4 steel profiles 80/80 mm Upper shelf: metal plate 430 x 390 x 8 mm Bottom shelf: metal plate 430 x 390 x 8 mm Maximum load (for one stand): 300 kg Recommended speaker weight: up to 60 kg
A COMPLETE SET INCLUDES : One set consists of two stands. Each stand contains: 4 bolts to close the ballast chambers (optionally, the chambers might be filled with sand or lead shot); 4 spikes for the bottom shelf; 3 soft anti-vibration pads for the top shelf; 4 anti-scratch disks protecting the floor
ACCESSORIES
ANTI-VIBRATION BASES BW40MKII
BW40MKII anti-vibration bases have a sandwich structure. The base structure has been tuned by means of special blending of alloy and high-fiber-content steel and carbon polymers.The anisotropic properties of the materials used and the differences in their surface densities (tensile and compressive stresses) allowed the desired damping characteristics. Available finishing colours are silver or silver-gold.
The mats put under the CD player or valve amplifier ehhanced the effect. The sound became clearer and more focused.("Hi-Fi Choice", nr 03/2013)What improved in particular was the sound energy. Perhaps that is why I had an impression of abundance of everything – both high and low frequencies, mass and space. The sound grew and became more refined.
"High Fidelity", nr 111/2013
After placing the amplifier on the platform with the BW40MKII interfaces beneath the Ayon footers, everything became more abundant. It was a truly interesting experience. Listen to the component on a classic rack shelf, then on this system where the platform and footers work together. This would persuade any doubter (or more precisely, someone with inadequate knowledge) that products reducing vibrations really do change the sound of supported devices. The difference is big, a zero-one kind of difference. What improved in particular was the sound energy. Perhaps that is why I had an impression of abundance of everything – both high and low frequencies, mass and space. The sound grew and became more refined.
TECHNICAL DESCRIPTION : sandwich structure (alloy metals, high carbon content steel, carbon fiber.); overall height: 18 mm; diameter: 40 mm; overall weight: 133 g; operating temperature range: 40oC to 80oC; maximum load for a single base: 13,75 kg; maximum load with three bases: 41 kg; maximum load with four bases: 55 kg;
APPLICATIONS : CD players Analog gramophones DAC (Digital to Analog Converters) Power amplifiers Integrated amplifiers Preamplifiers Loudspeakers Anti-vibration platforms A COMPLETE SET INCLUDES : 1 base
ANTI-VIBRATION MASSIVE PROTECTIVE DISKS S40
S40 anti-vibration massive protective disks with sandwich structure are designed for audio systems.
The anti-vibration effect of the spikes, which rest on disks, consists in minimizing vibration transmission between the base and audio components. Minimizing contact area results in kinetic energy turning into heat energy (entropy).
The disc structure has been tuned by means of special blending of alloy steel, brass alloy and carbon polymers. The anisotropic properties of the materials used and the differences in their surface densities (tensile and compressive stresses) allowed the desired damping characteristics.
Available finishing colours are silver or silver-gold. TECHNICAL DESCRIPTION : sandwich structure (alloy metals, carbon fiber.); overall height: 6 mm; diameter: 40 mm; overall weight: 54 g; operating temperature range: 40OC to 80OC; maximum load for a single disk: 200 kg; maximum load with three disks: 600 kg; maximum load with four disks: 800 kg;
APPLICATIONS : Loudspeakers Speaker stands CD players Analog gramophones DAC (Digital to Analog Converters) Power amplifiers Integrated amplifiers Preamplifiers Anti-vibration platforms A COMPLETE SET INCLUDES : 1 base
ANTI-VIBRATION SPIKES 3S40
Anti-vibration spikes with sandwich structure and adjustable height are designed for high end audio systems.
The anti-vibration effect of the spikes, which rest on massive protective disks, consists in minimizing vibration transmission between the base and audio components. Minimizing contact area results in kinetic energy turning into heat energy (entropy).
The spike structure has been tuned by means of special blending of alloy and high-fiber-content steel and carbon polymers. Available colors include silver, gold, and silver-gold.
TECHNICAL DESCRIPTION : three adjustment points; sandwich structure (alloy steel, brass alloy, high carbon content steel, carbon fiber.); spike height: 32 mm; washer height: 6 mm; overall height (spike plus washer): 38 mm; diameter: 40 mm; overall weight: 238 g; operating temperature range: -40oC to 80oC; maximum load for a single spike: 100 kg; maximum load with three spikes: 300 kg; maximum load with four spikes: 400 kg;
APPLICATIONS : CD players; Analog gramophones; DAC (Digital to Analog Converters); Power amplifiers; Integrated amplifiers; Preamplifiers; Loudspeakers; Anti-vibration platforms A COMPLETE SET INCLUDES: 1 spike massive protective disk
